◇◇ Overview ◇◇

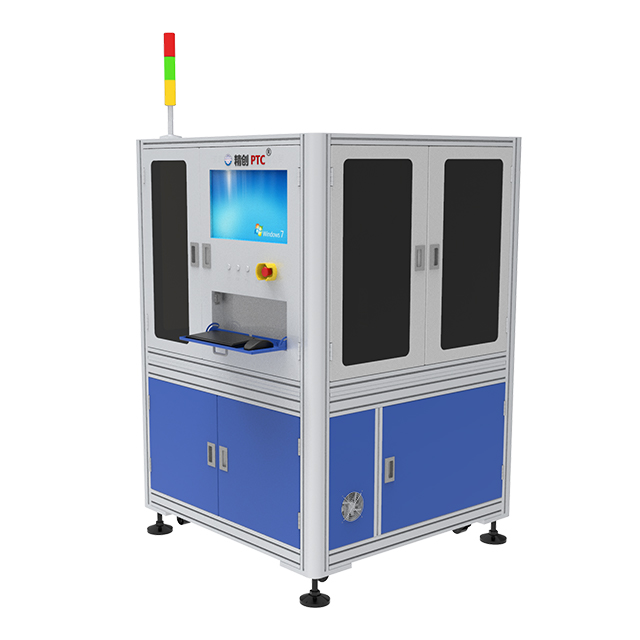

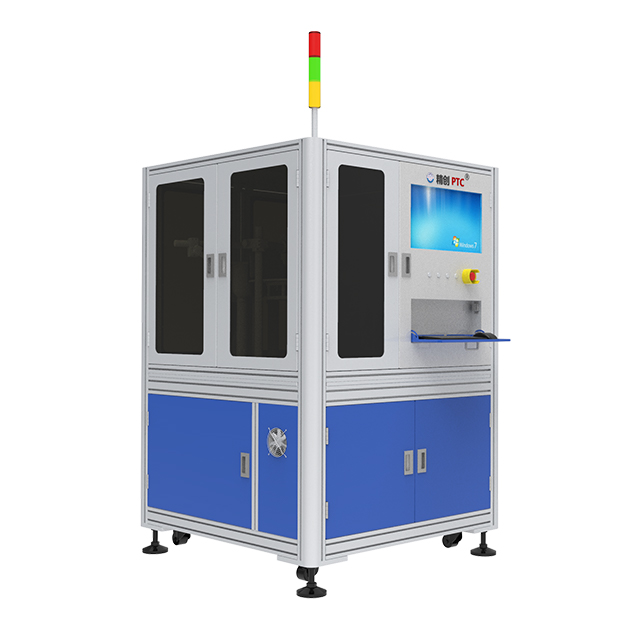

It is capable of inspecting product dimension and cosmetic defect, such as pinhole, bump, notch, stripe, crack, bright spot and stain. It can automatically determine whether the products are OK or NG and sort them into bins. When the bin is full of products, it will trigger an automatic alarm. This Small Size AOI Equipment enables users to view product inspection data and display defect image information, which facilitates the analysis of product inspection status and re-inspection.
◇◇ Features ◇◇
● It automatically displays the defect category, defect size, location coordinate after inspection and saves the original image;
● Powerful AI capability : The software automatically marks defects and proceeds model training, filters false defects, and improves product yield;
● Adjustable defect size parameters;
● User management software function: It enables the addition, modification, and deletion of login accounts;
● The software can record equipment operating status and abnormal operational problems;
● This Metal Parts AOI Equipment is designed with the functions of data query, data export and data analysis. The software interface operates easily and can be connected to MES;
● Single station images can be manually loaded for inspection;
● High efficiency, about 2100 pcs/h.
◇◇ Specifications ◇◇
Loading and unloading docking method | Vibratory bowl loading, belt unloading; |
Capacity | ≥1.7s/pcs |
Product thickness | Thickness: 2.5mm±0.05mm |
Product range | Magnet |
Inspection item | Dimension, Pinhole, Bump, Notch, Stripe, Crack, Bright spot, Stain. |
Inspection rate | 99.9% |
Overkill rate | ≤1% |
Software function | 1. Real-time inspection process and final inspection results, sending OK & NG instructions; 2. It can conduct statistics on production data, product information, batch information, production quantity, and yield. It also support data saving, query, and data export to Excel; |
Power | About 3.5KW |
Voltage | Single-phase 240V |
Air pressure | 0.4-0.7MP |
Dimension | 1400mm x 1400mm x 1800mm (Not include the vibratory bowl and the docking belt) |
