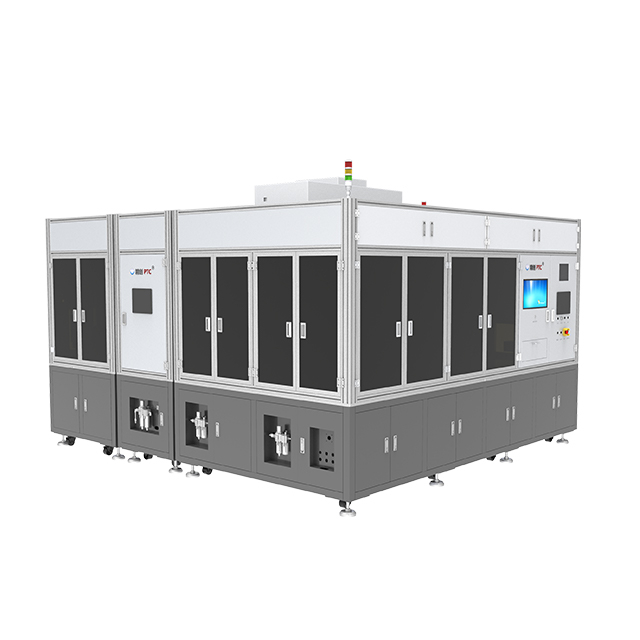

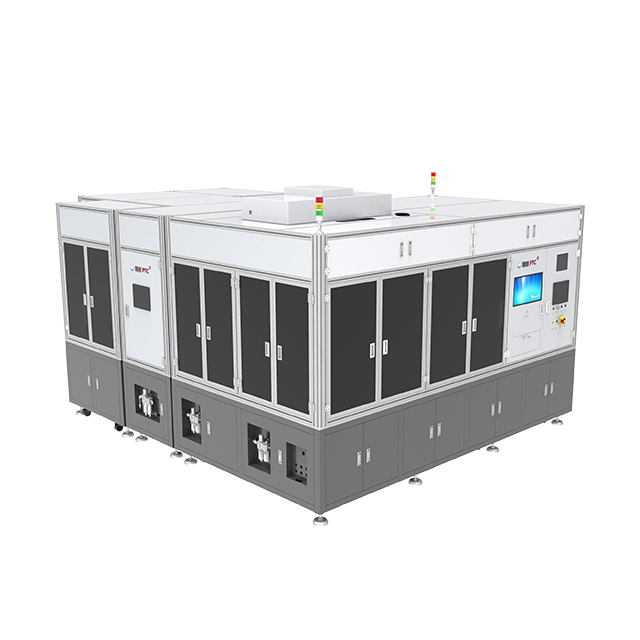

◇◇ Features ◇◇
The equipment is capable of isolating downstream devices to operate with manual unloading and independent detection, and incorporates stepless speed adjustment function.
It performs automatic positioning, coding, and scanning of the top cover.
Upon completion of inspection, the optical measuring device displays defect categories and defect locations, while also supporting archival of original image data.
The system enables comprehensive statistics on product information, batch details, production quantity, and yield rate. It further facilitates data storage, querying, and export to Excel format.
Equipped with robust data query, export, and analysis capabilities, the system features an user-friendly software interface and supports integration with MES (Manufacturing Execution System).
An automatic loading module is employed, utilizing robotic handling for top cover placement with anti-misorientation function.
The system demonstrates high operational efficiency, achieving a throughput of approximately 1,800 pieces per hour.
◇◇ Specifications ◇◇
Loading and unloading docking method | Belt |
Capacity | 30PPM |
Product range | Top cover |
Inspection Item | Orientation error of burst disc on top cover, burrs on terminal holes and filling holes, dimension of terminal holes and filling holes, dimension of venting slot and step, solder misalignment, burst spot, blowout hole. |
Escape rate | 0.5% |
Overkill rate | ≤2% |
Software function | 1. Real-time inspection with OK/NG output. 2. Save operation and exception logs； 3. Supports online and offline modes. It autonomously execute recipes in offline mode to ensure data integrity |
Power | About 22KW |
Voltage | Three-phase 380V |
Air pressure | 0.5-0.7MP |
Dimension | 3500mm(L)*4500mm(W)*2200mm(H) (Height doesn't include FFU) |
Product dimension | Compatibility range: 10-40mm (W), 60-200mm (L) ±0.05mm deviation |
