Large Handheld Polariscope

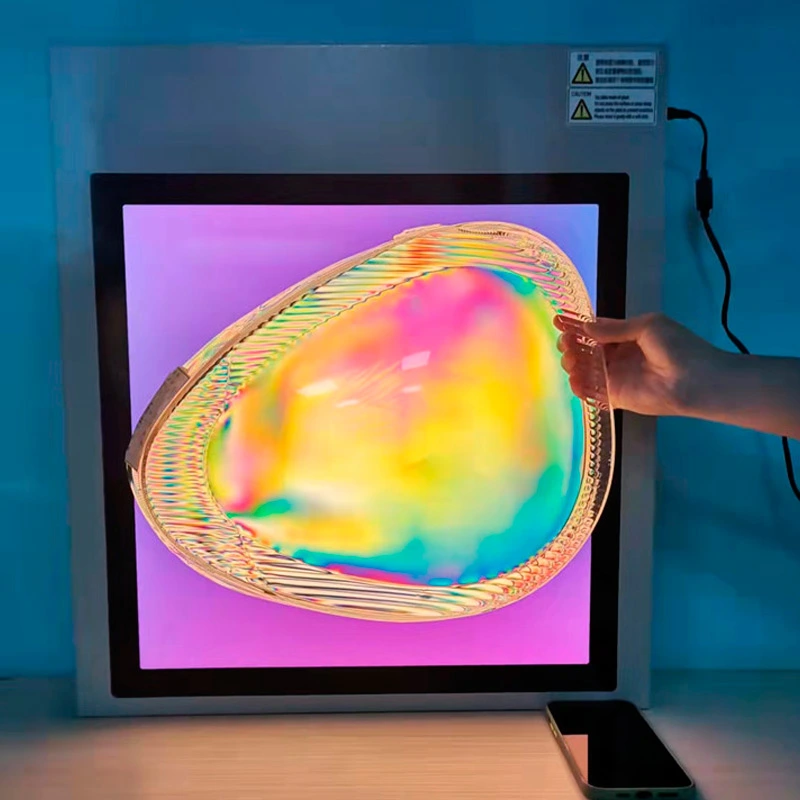

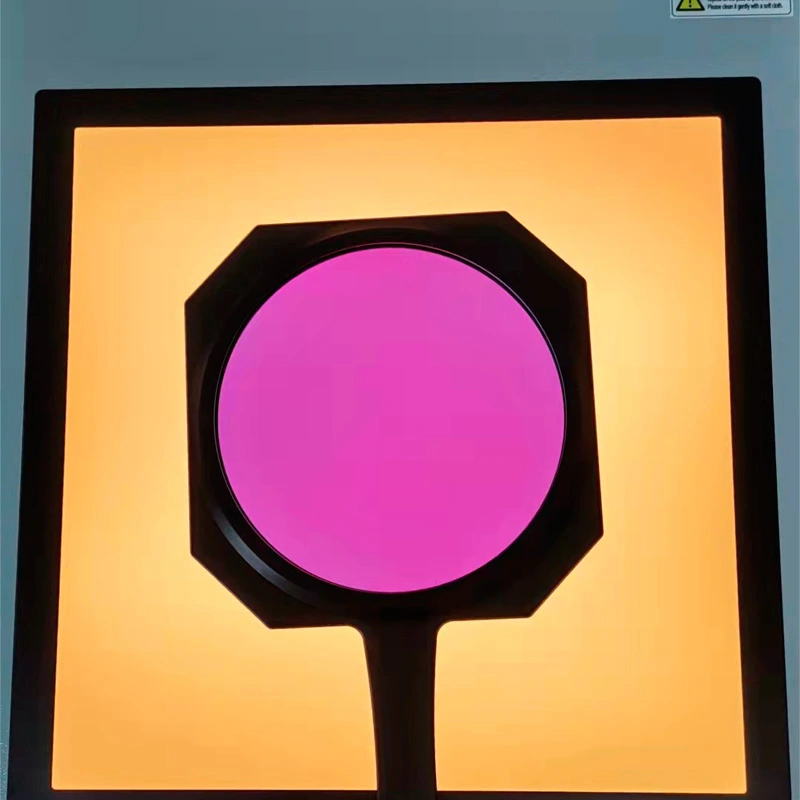

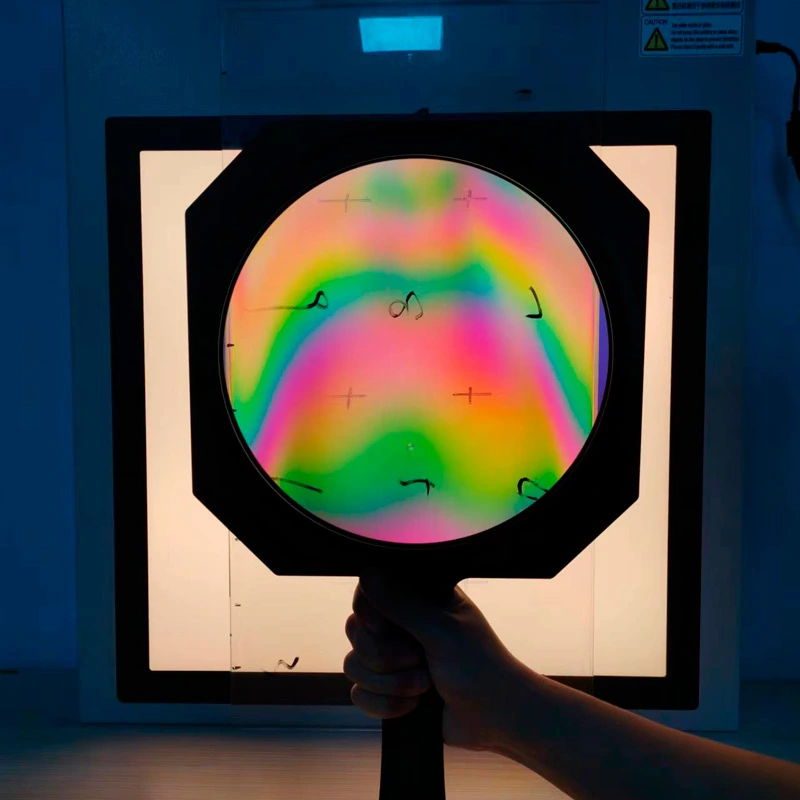

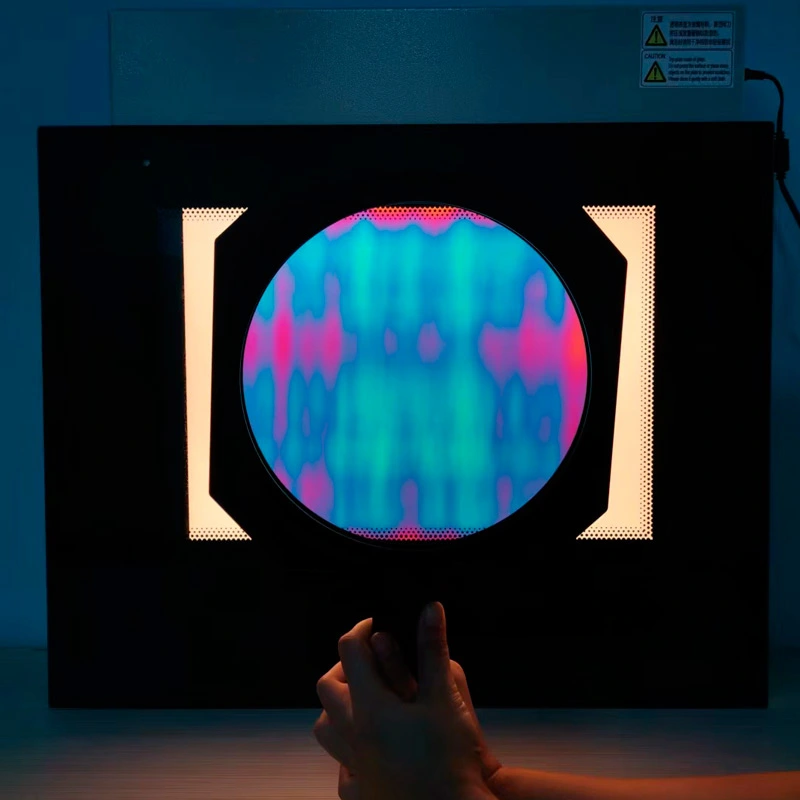

The large handheld Polariscope is a versatile tool designed to address a broad spectrum of strain viewing applications, particularly in the quality control inspection of glass, crystal and plastic components. Its unique design allows it to function effectively as both a vertical and horizontal viewing instrument, providing flexibility in various inspection scenarios.The working space available within the unit enables a wide variety of objects to be accommodated for hand held examination under polarizing light.



Availability:
Quantity:


◇◇ Features  ◇◇


  • Versatile Orientation: The device can be used in either a vertical or horizontal position, making it adaptable to different inspection needs and environments.

  • Spacious Working Area: The sufficient working space within the unit allows for the accommodation of a wide variety of components, enabling users to inspect items of different shapes and sizes under polarizing light.

  • Ease of Use: Engineered for straightforward operation, ensuring accessibility for users of all skill levels.

  • Real-Time Display: Offers instant visualization of stress presence and distribution, enhancing user experience and decision-making.

  • Long Service Life: Constructed with premium materials and cutting-edge technology, guaranteeing durability and minimizing maintenance and replacement expenses.


◇◇ Specifications ◇◇


Model No.

PSV-202-DL

Retardation of full-wave plate

560nm

Viewing field

400mm*400mm

Analyzer

Diameter 200mm

Polarizer

400mm*400mm

Overall size

571*512*130mm

Net weight

About 18KG

Voltage

24VDC ( supplied with an AC/DC adaptor )

Light source

White LED module
