Preform Strain Viewer

Name: Preform Strain Viewer
Brand: Suzhou PTC Optical Instrument Co., Ltd.

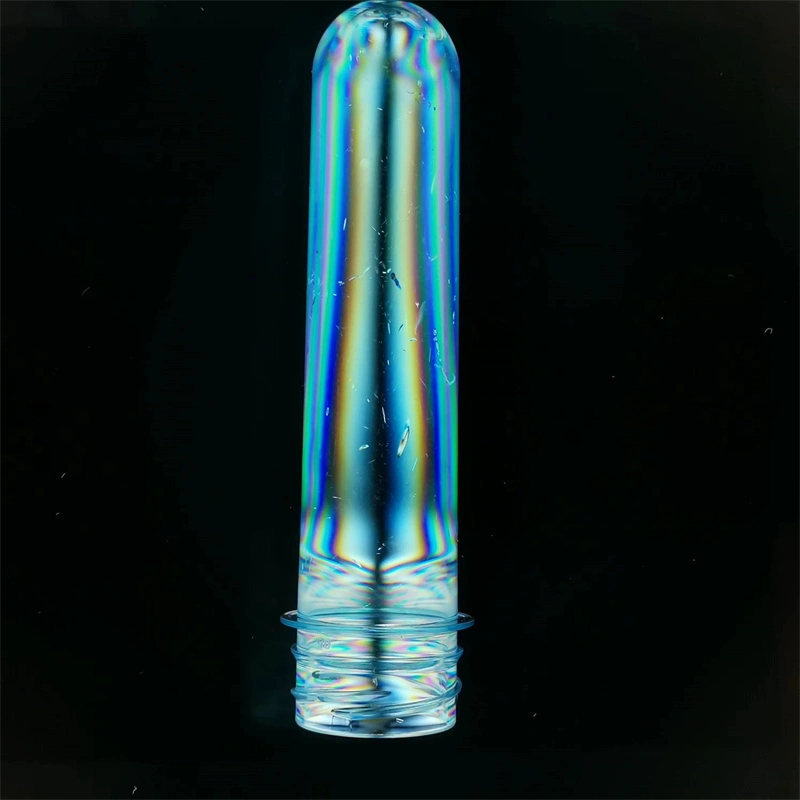

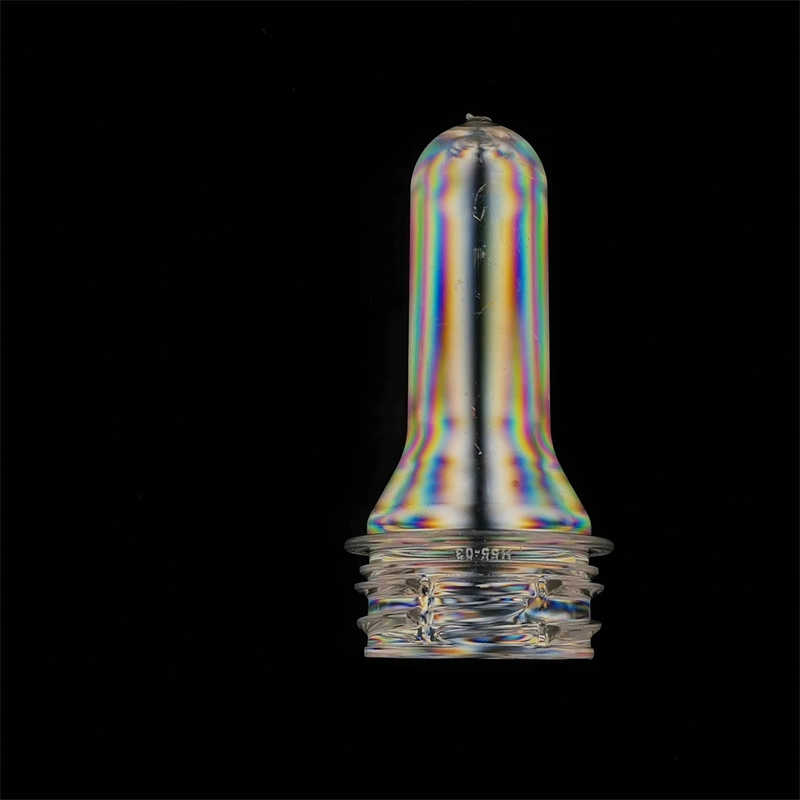

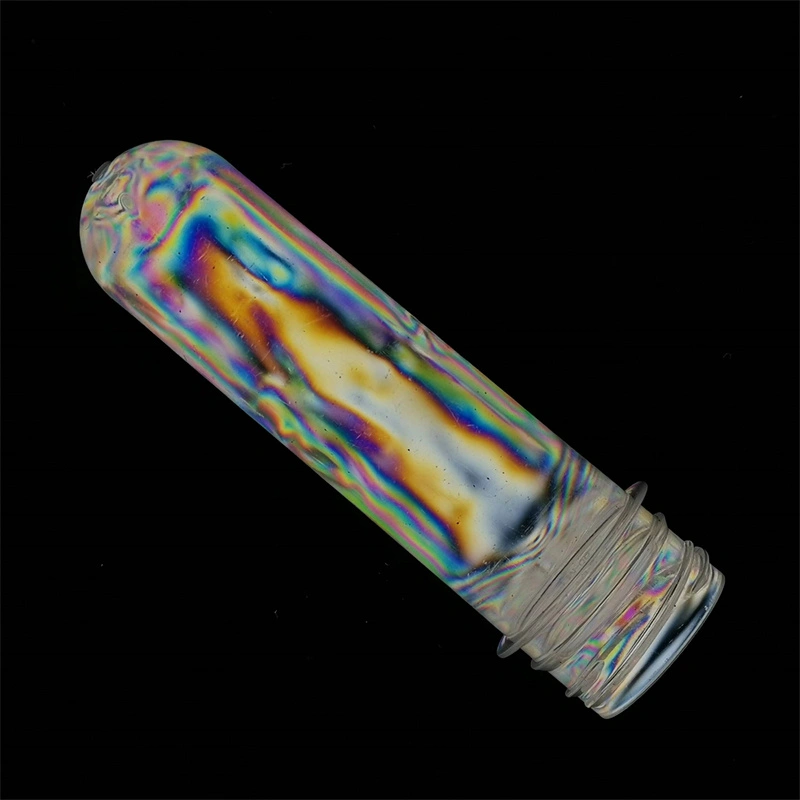

The Preform Strain Viewer PSV-802 is a professional equipment specifically designed for the quality inspection of preforms. This strain viewer operates based on the principle of polarized light. When polarized light passes through stressed material, the changes in its polarization state can be visualized. It employs advanced optical stress detection technology, enabling it to quickly measure the stress distribution inside the preforms, thus ensuring the stability of the subsequent bottle blowing process.

Get A Quote

Features of Preform Strain Viewer

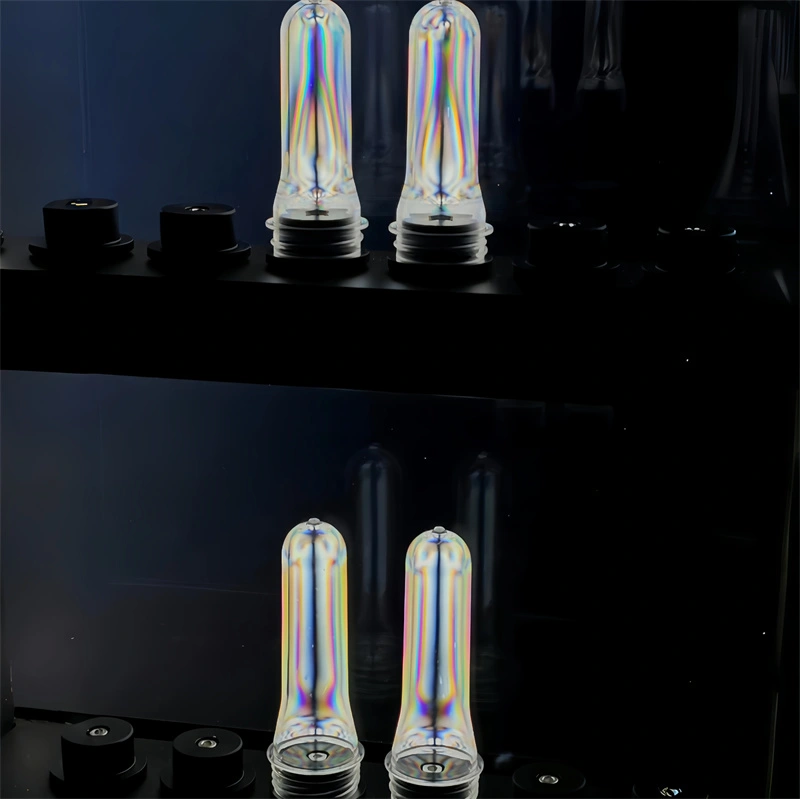

High Efficiency in Batch Detection: It can simultaneously conduct stress detection on 16 preforms, significantly improving the detection efficiency. It is especially suitable for the quality monitoring process of large-scale preform production enterprises.

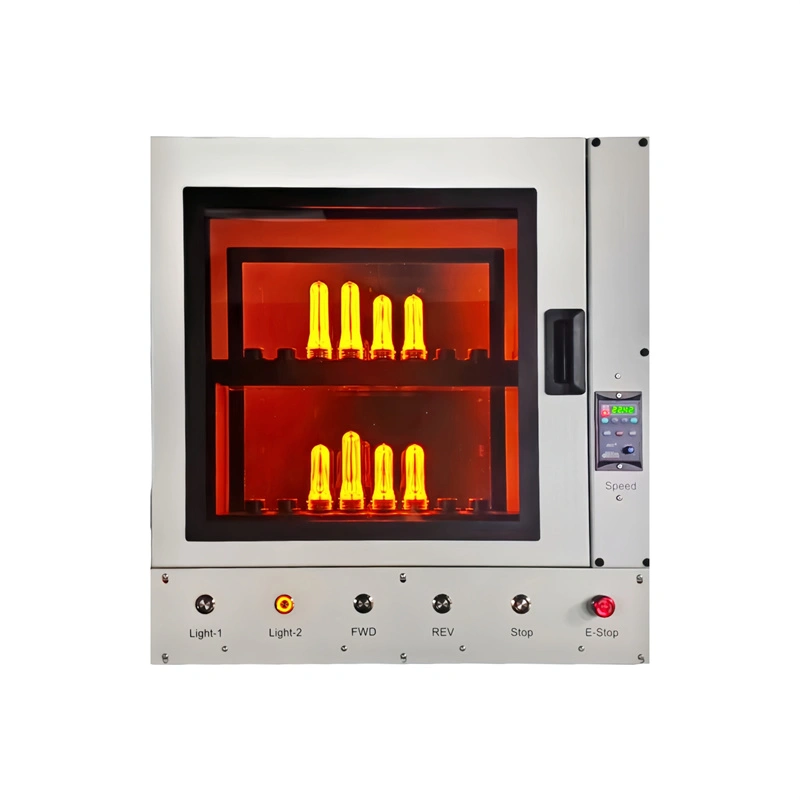

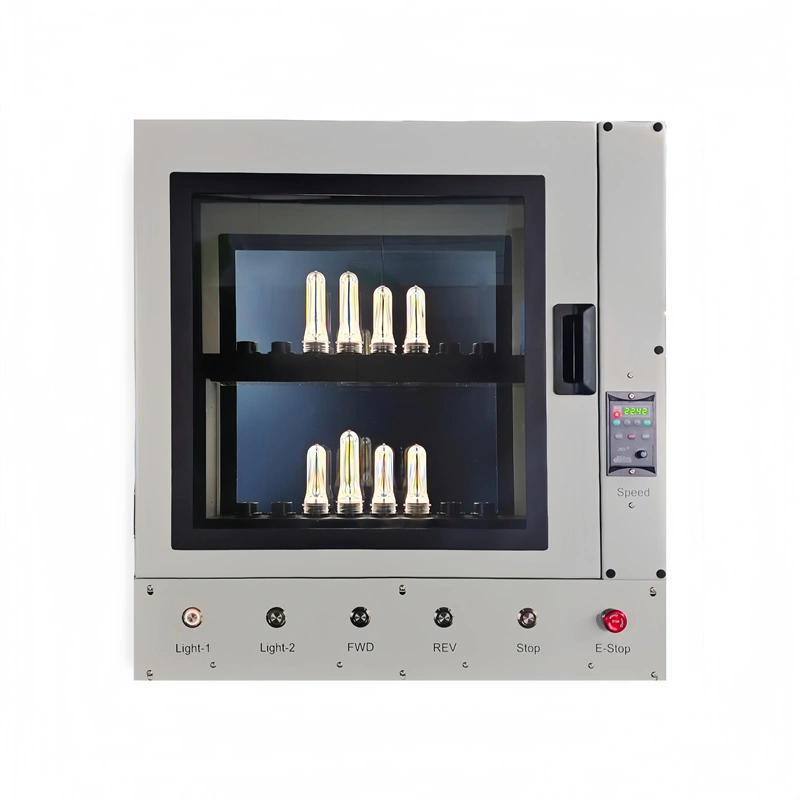

Double LED Light Sources: Use white LED light for effectively assessing the common defects within transparent PET preforms. Use yellow LED light for effectively identifying defects in colored preforms.

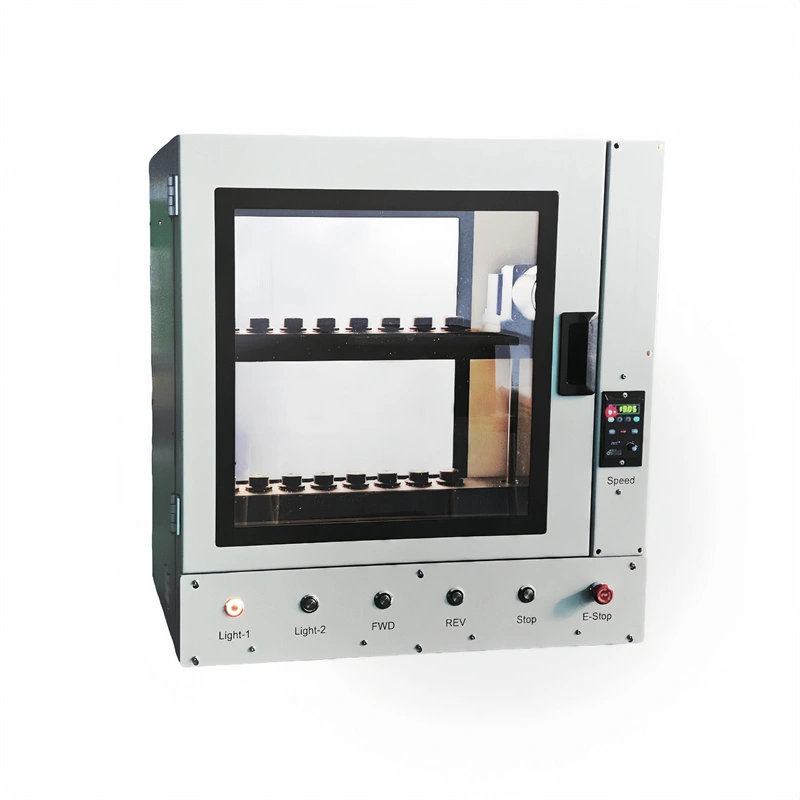

Ease of Operation: The equipment features simple and intuitive operation buttons. The rotation speed of the preform holder is adjustable, optimizing the production management mode.
Customizable: The perform holder can be customized according to the inner diameter of the customers' preforms. This bespoke service not only ensures a perfect fit for unique PET preform dimensions but also maximizes the accuracy and reliability of stress detection.

Specifications

Model No.	PSV-802
Viewing area	400*400mm
Maximum rotational speed	40r/min
Dimension	W645D420H700mm
Weight	About 82kg
Total number of PET preforms tested	16 pcs
Light source	LED white and yellow light
Power supply	AC 220V±10% 50/60Hz
Use environment （Temperature and humidity）	Use indoor, 15-35 °C 25%-85% （No condensation）
Storage environment （Temperature and humidity）	10-45°C 25%-85% ( No condensation )
