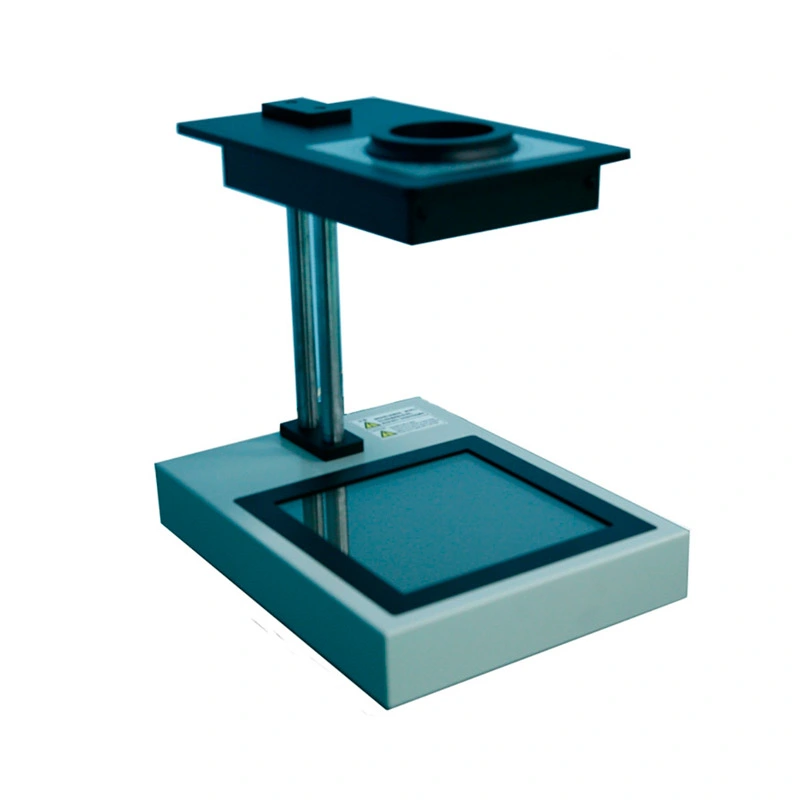

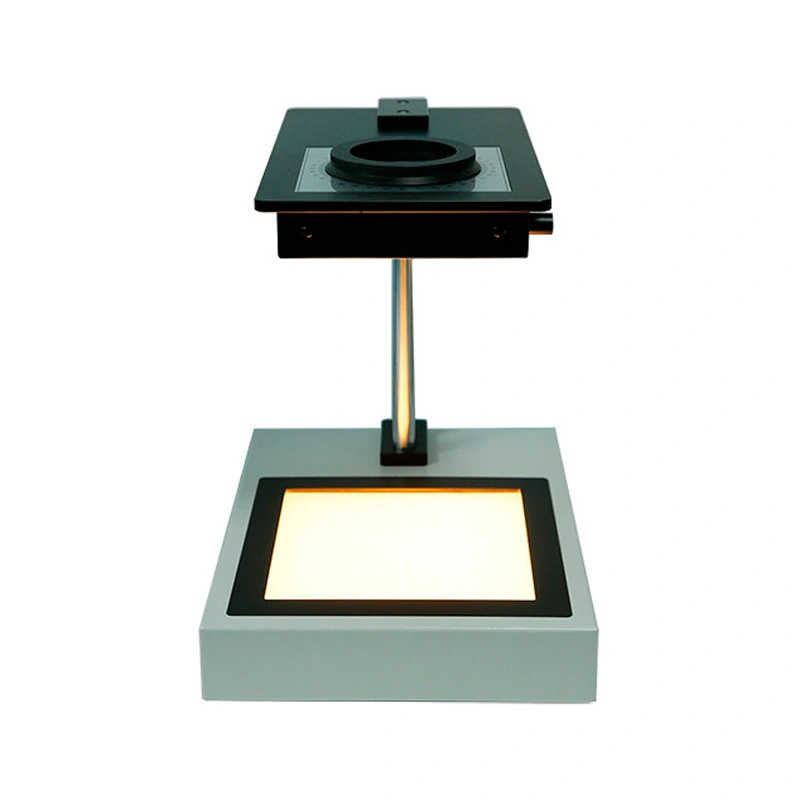

Manually Operated Polarimeter

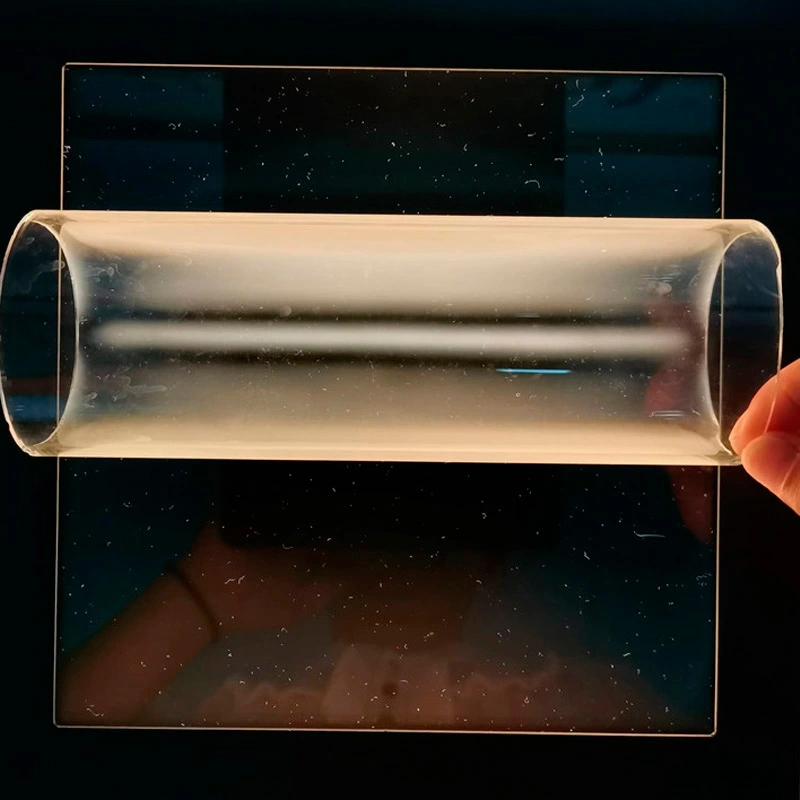

A manually operated polarimeter is an optical instrument primarily used to measure retardation caused by passing polarized light through Birefringent material.

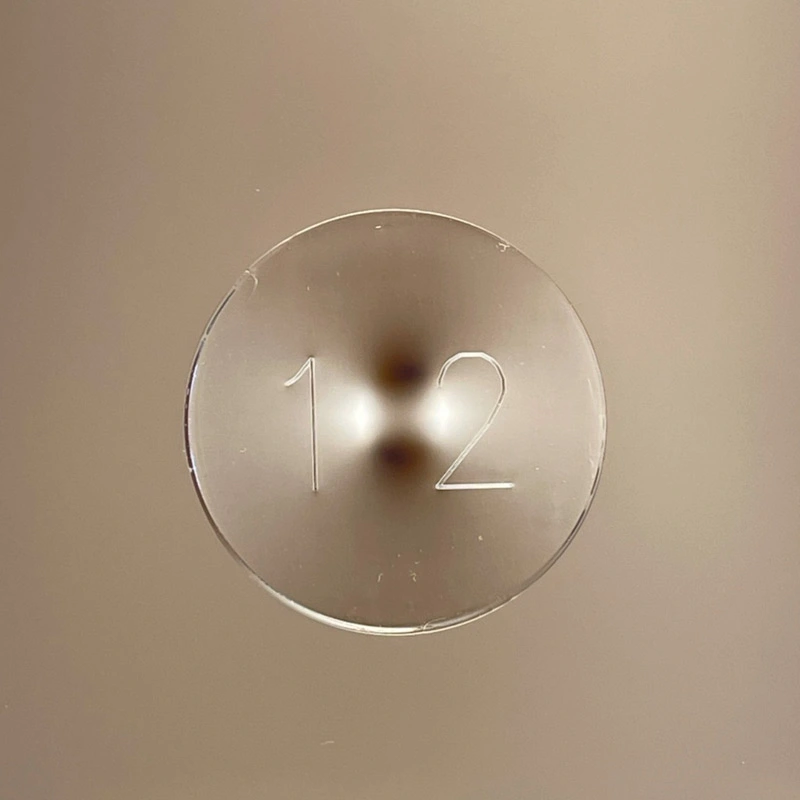

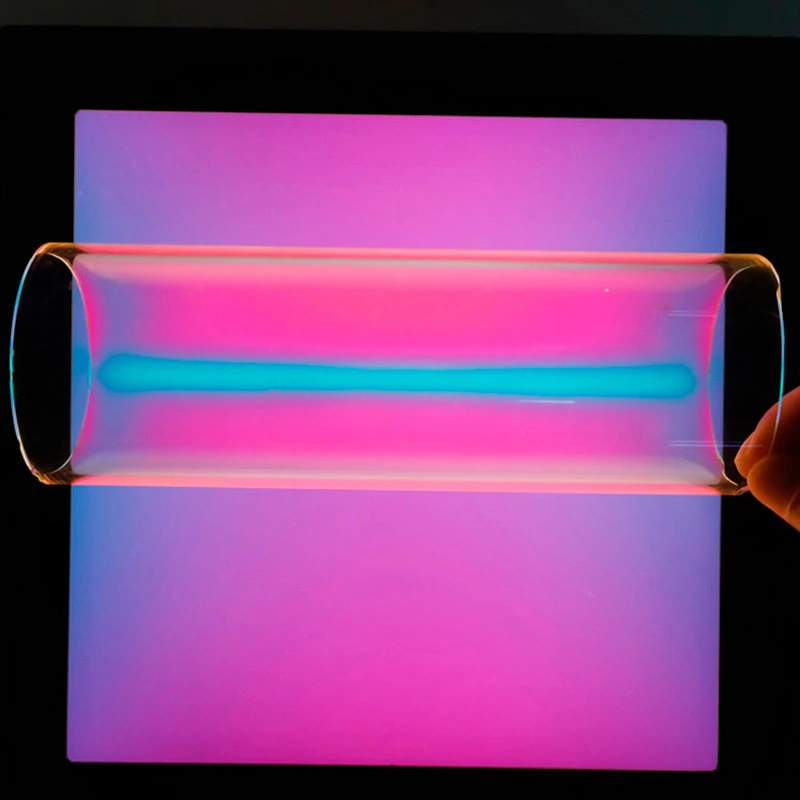

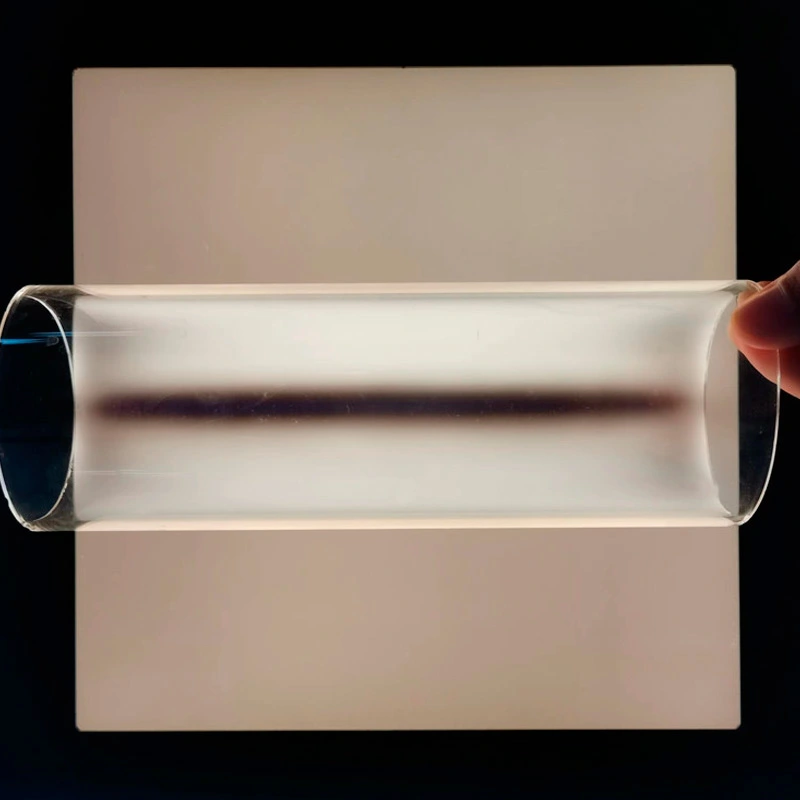

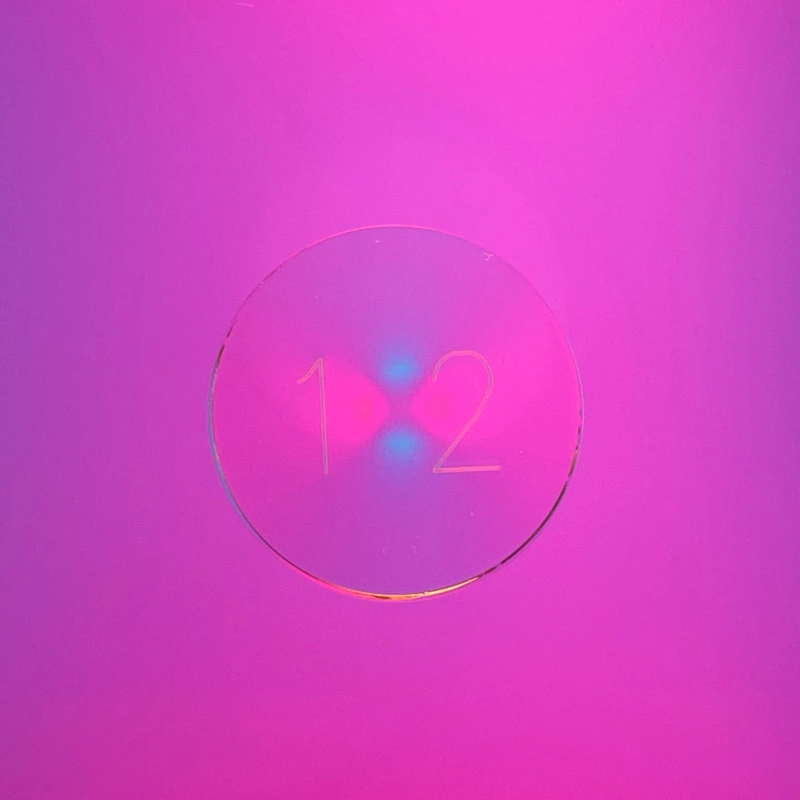

Sensitive color method is adopted to observe internal stress presence. Meanwhile, Senarmont compensation method is used to accurately measure optical retardation of transparent objects. It has a wide application in areas where stress issue is highly concerned, such as pharmaceutical industry, glass industry, semiconductor industry and many others.



Availability:
Quantity:


◇◇ Features  ◇◇


  • Stress-Related Control Range: The data obtained from the polarimeter can help establish acceptable stress-related limits for materials. This information can be used to set control ranges for manufacturing process, ensuring that materials do not exceed stress levels that could lead to failure.

  • Subjective Judging Standard: While the data from a polarimeter is objective, it can be used to create subjective standards or guidelines that both suppliers and customers agree upon. In cases where there is a disagreement between suppliers and customers regarding the quality or performance of a material, the objective data provided by a polarimeter can serve as a standard for judgment.


◇◇ Specifications ◇◇


Model No.

PSV-413

Analyzer

Diameter 78mm

Polarizer

200*200mm

Retardation measuring range

0-565nm

Rotating angle measuring range

-180°-180°

Measure height ( adjustable )

Max 259mm

Light source

White LED module

Power

24VDC (equipped with an adaptor AC/DC adaptor

Overall size

280×385×390mm

Net weight

About 11Kg
