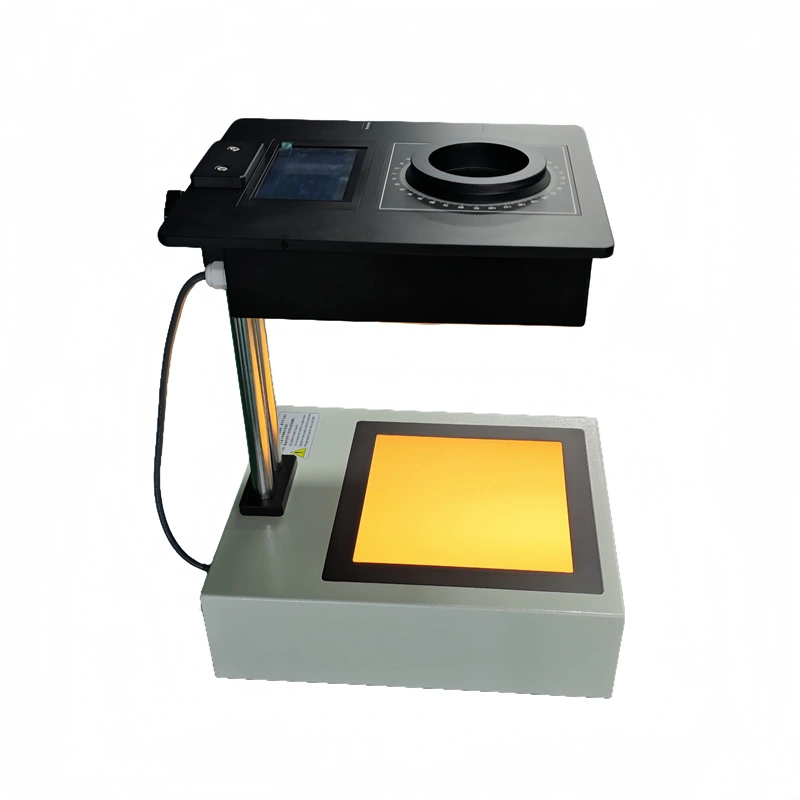

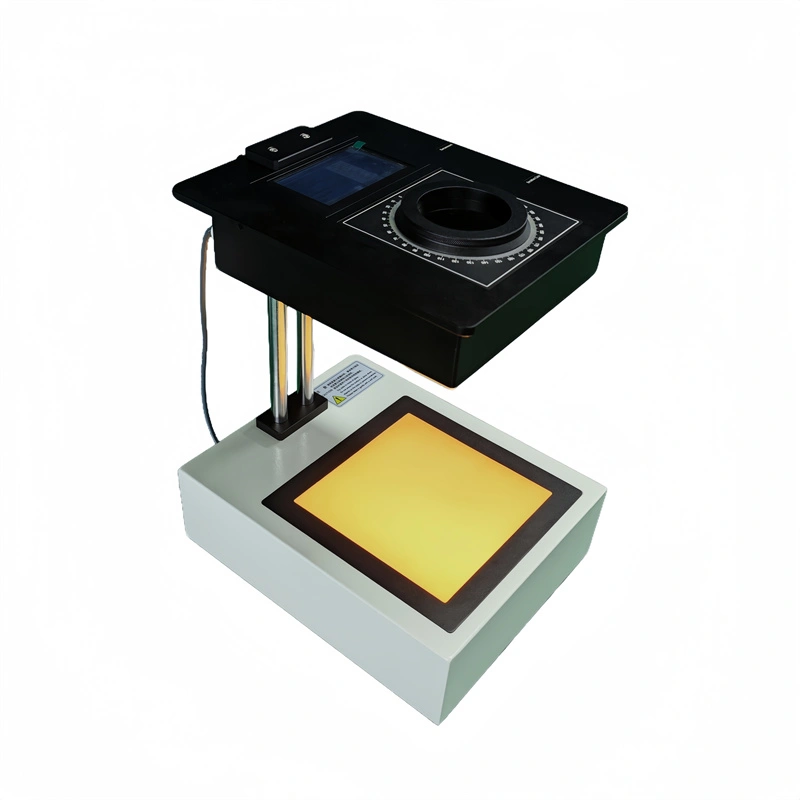

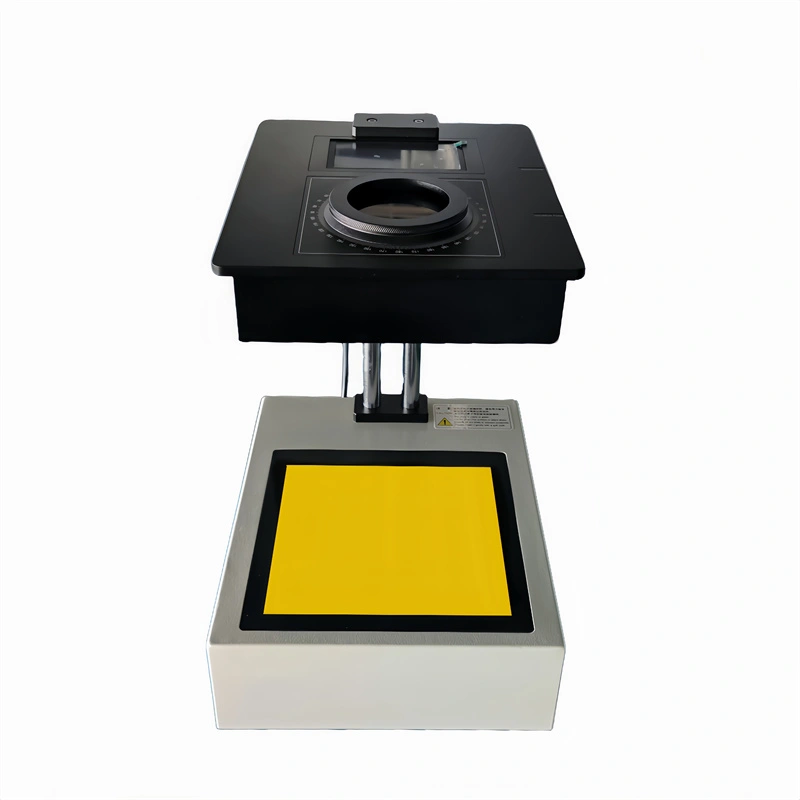

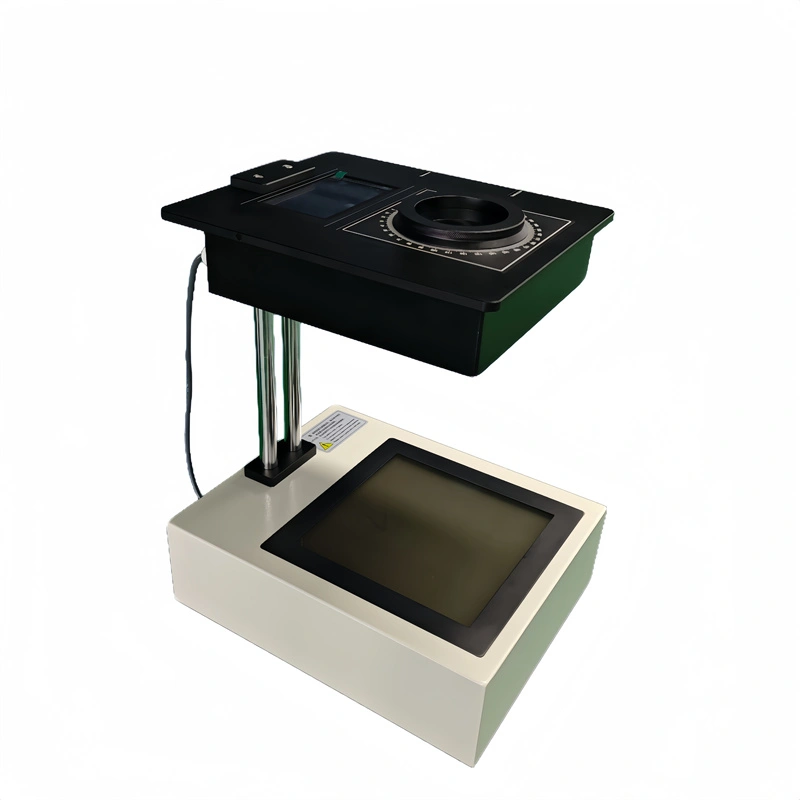

The Digital Polarimeter PSV-413K is an optical instrument primarily used to measure retardation caused by passing polarized light through birefringent material. High-precision angle encoders are utilized to measure angles, and the measured data is directly presented on the display screen. Sensitive color method is adopted to observe internal stress presence. Meanwhile, Senarmont method is used to accurately measure optical retardation of transparent objects.
| Quantity: | |
|---|---|

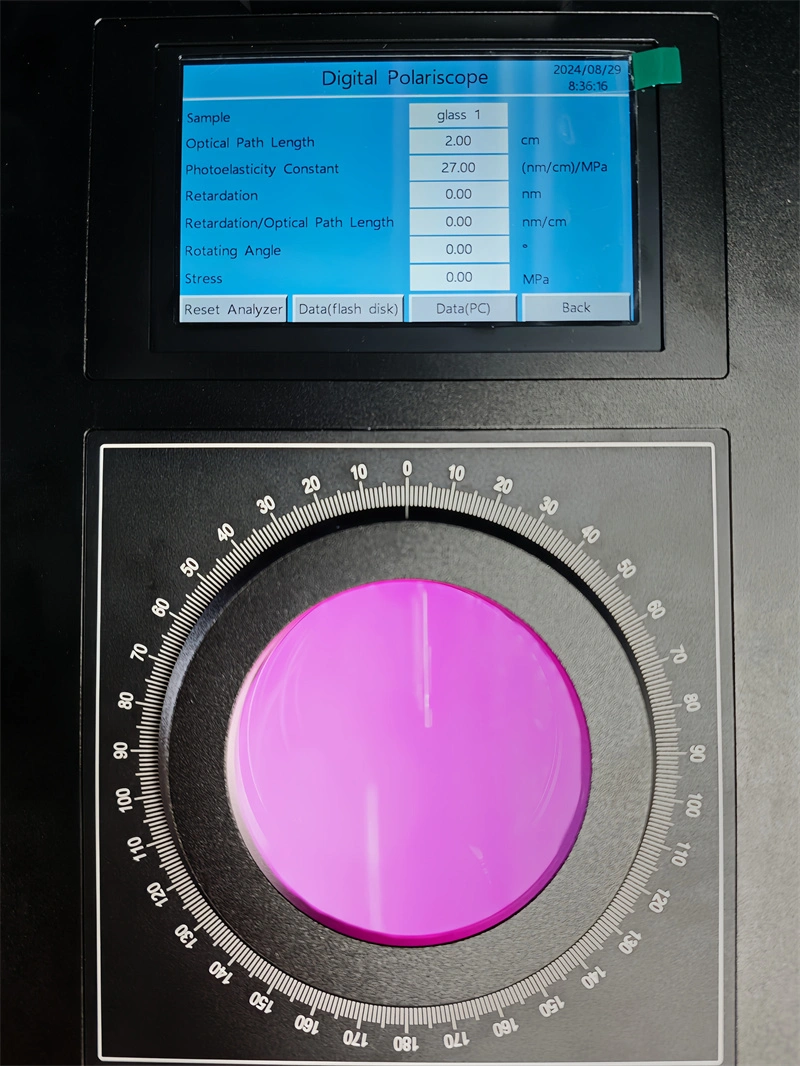

High measurement accuracy: Through advanced digital display technology, the polarimeter can directly display the measured data, avoiding the reading errors that may occur in traditional pointer-type instruments.
Strong data processing ability: The stored data can be transferred to a computer through the USB interface. Users can use professional data analysis software to further process the data, so as to better understand the mechanical properties of materials.
Multi-functional measurement: Within the defined measuring range, conduct precise measurements of the retardation caused by residual stress, which allows for in-depth understanding of the internal stress magnitudes and distributions.
Model No. | PSV-413K |
Analyzer | Diameter 78mm |
Polarizer | 200*200mm |
Measuring range ( optical retardation ) | 0-565nm |
Measure height ( adjustable ) | Max 259mm |
Light source | Warm white LED light 10W |
Power | 24VDC ( AC /DC adaptor supporting 100-240VAC) |
Size | 370*300*464mm |
Weight | About 16Kg |
High measurement accuracy: Through advanced digital display technology, the polarimeter can directly display the measured data, avoiding the reading errors that may occur in traditional pointer-type instruments.
Strong data processing ability: The stored data can be transferred to a computer through the USB interface. Users can use professional data analysis software to further process the data, so as to better understand the mechanical properties of materials.
Multi-functional measurement: Within the defined measuring range, conduct precise measurements of the retardation caused by residual stress, which allows for in-depth understanding of the internal stress magnitudes and distributions.
Model No. | PSV-413K |
Analyzer | Diameter 78mm |
Polarizer | 200*200mm |
Measuring range ( optical retardation ) | 0-565nm |
Measure height ( adjustable ) | Max 259mm |
Light source | Warm white LED light 10W |
Power | 24VDC ( AC /DC adaptor supporting 100-240VAC) |
Size | 370*300*464mm |
Weight | About 16Kg |
