Fully Automatic Polarimeter 145

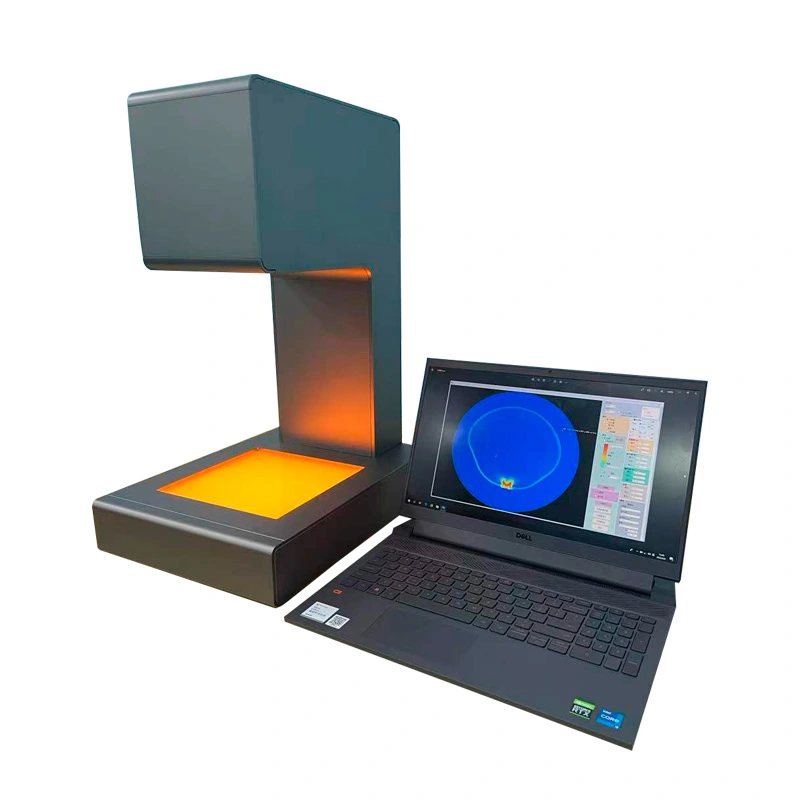

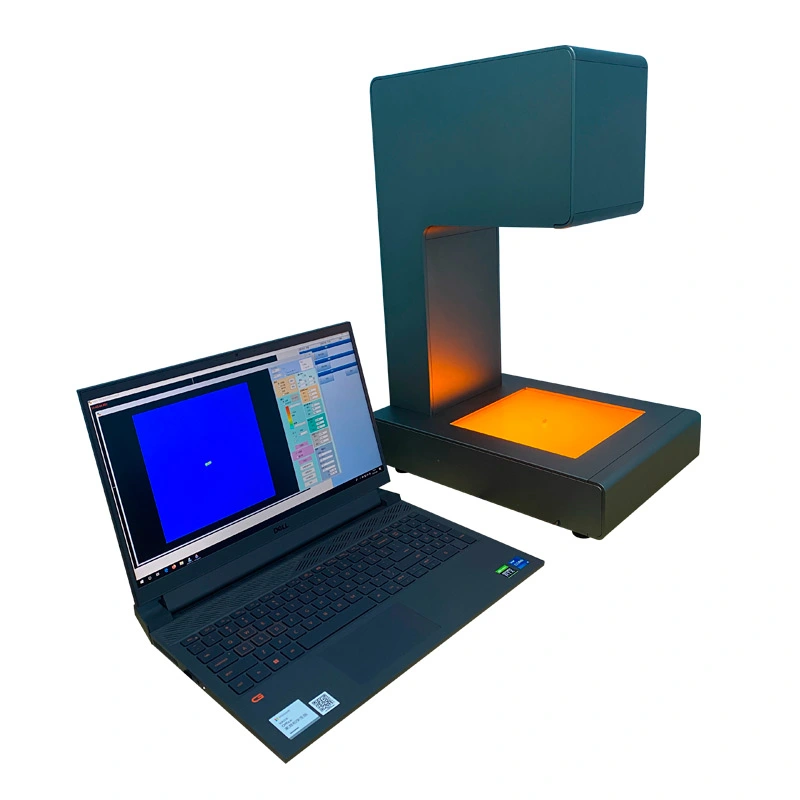

Fully Automatic Polarimeter 145 is a stress measurement device that automatically detects the retardation and the slow axis direction of transparent objects, which displays birefringence phenomenon under polarized light. A high resolution camera is adopted to take sample pictures from different angles. By analyzing change in polarization state caused by stress presence with specific algorithm, the optical retardation value will be measured. By applying the retardation to a formula, stress value in the sample will be calculated automatically.

Features of Fully Automatic Polarimeter 145


  • Full-automation: One-key automatic stress measurement within the whole viewing field.

  • High efficiency: A single measurement can be finished in 15s under high-speed mode.

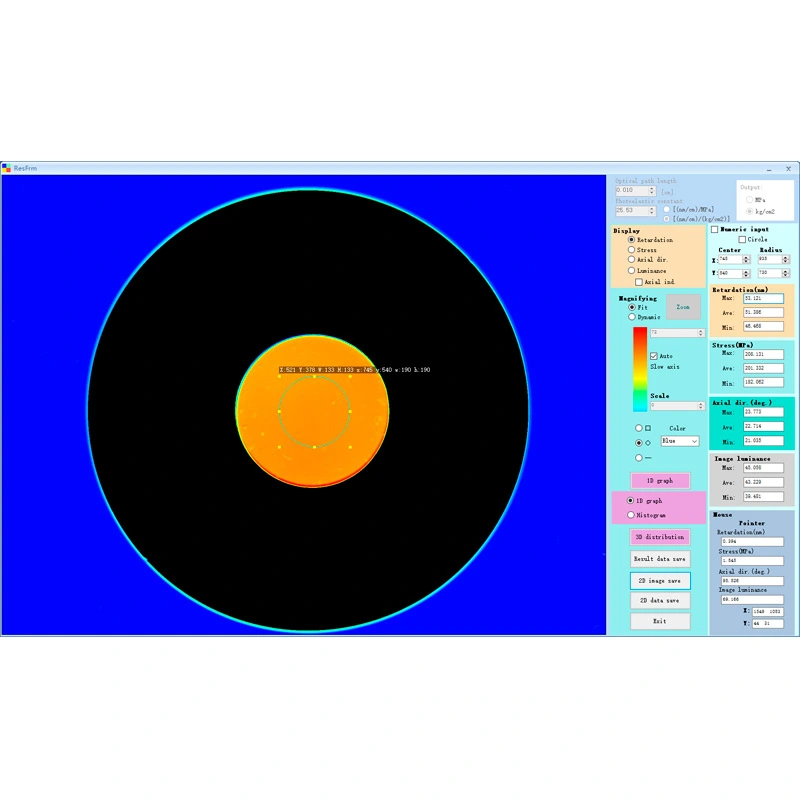

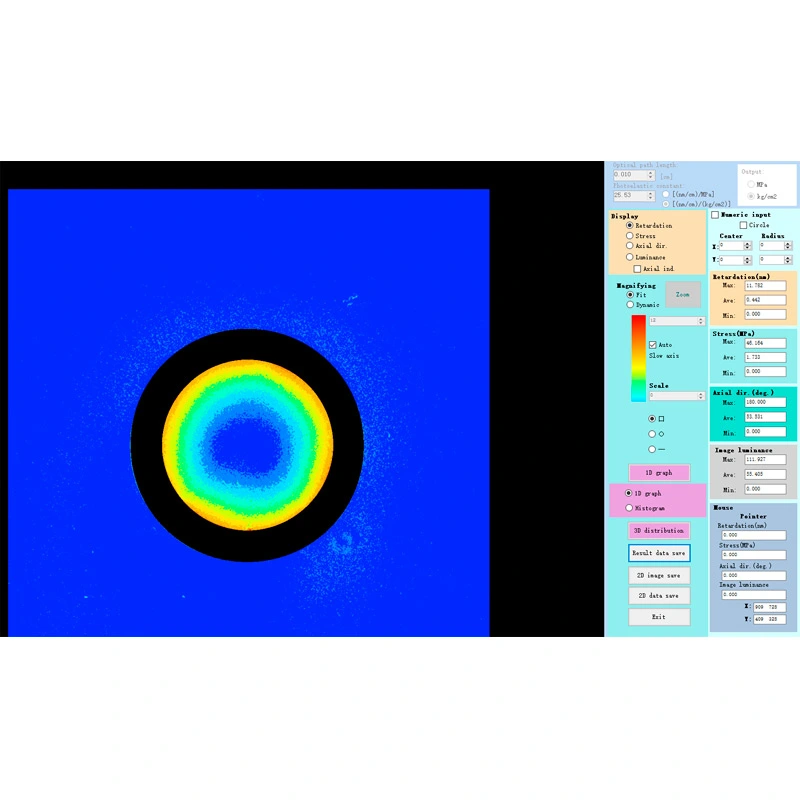

  • Strong result analysis function:

    ① 3D stress image within the viewing field

    ② 2D Area stress analysis

    ③ 1D line stress analysis

    ④ Point stress analysis

  • High accuracy: Made with high-quality materials and advanced technology to ensure high repeated measurement accuracy.

  • No background interference: Eliminating environment interference by calibration under background light before the first measurement.


Specifications


Model No.

NMV-145

Effective measuring area

175*175mm

Measuring height

0~278mm

Retardation measuring range

0-145nm

Detection method

rotating analyzer method

Setting wavelength

590nm

Repeated measurement accuracy

±1nm

Effective pixels

1100*1100

Overall size

391*287*575mm

Net weight

about 22kg

Light source

high brightness LED

Power supply

AC 100~240V 50/60Hz 0.35A

Support system

Windows10

Use environment

indoor use

Environment temperature

10℃~40℃

Environmental humidity

25% ~ 85%


Fully Automatic Polarimeter Application


High-Precision Glass & Optical Component Inspection

The automatic polarimeter NMV-145 delivers rapid, non-destructive stress analysis for tempered glass, optical lenses, and display panels. Its advanced imaging system detects micro-scale birefringence patterns with exceptional clarity, ensuring optimal quality control for smartphone screens, camera lenses, and precision optics.


Pharmaceutical & Medical Packaging Quality Assurance

Designed for critical pharmaceutical applications, the automatic polarimeter NMV-145 performs complete stress distribution mapping of vials, ampoules, and syringes. Its high-sensitivity detection identifies potential weak points and micro-fractures in glass containers, safeguarding drug integrity and patient safety.


Cutting-Edge Materials Research & Development

Ideal for R&D labs, the automatic polarimeter NMV-145 supports advanced studies in 3D-printed polymers, and thin-film materials. With automated batch processing and AI-enhanced analysis, it accelerates innovation while maintaining laboratory-grade precision for stress characterization.
