High Voltage Testing Equipment

This automated quality inspection equipment specializes in AC/DC hipot testing of ceramic substrates.
It conducts testing withstand voltage performance of ceramic substrates and copper-clad ceramic boards, effectively screening out defective samples containing cracks, bubbles, holes, and other defects.

Availability:

Quantity:



Inquiry Add to Cart

Product Description

◇◇ Features ◇◇

Automation: Batch loading & unloading, automatic inspection, and sorting. Robots handle product loading, and eight channels conduct simultaneous testing.

Independent 8-Channel Design: Real-time automatic voltage and current display per channel, with breakdown voltage and current recording.

Customizable Templates: Test parameters can be saved for different product models.

Intuitive Software: Simple, visual interface for easy operation.

Traceability: Serial numbers on ceramic substrates enable MES data upload and test logging.

◇◇ Technical specifications ◇◇

Cycle time	12s/pcs (30s testing) 14.5s/pcs (60s testing)
Voltage	380V
Power consumption	About 9KW
Air pressure	0.6Mpa
Dimension	4200mm(L)1800mm (W) 2100mm (H)

◇◇ Applications ◇◇

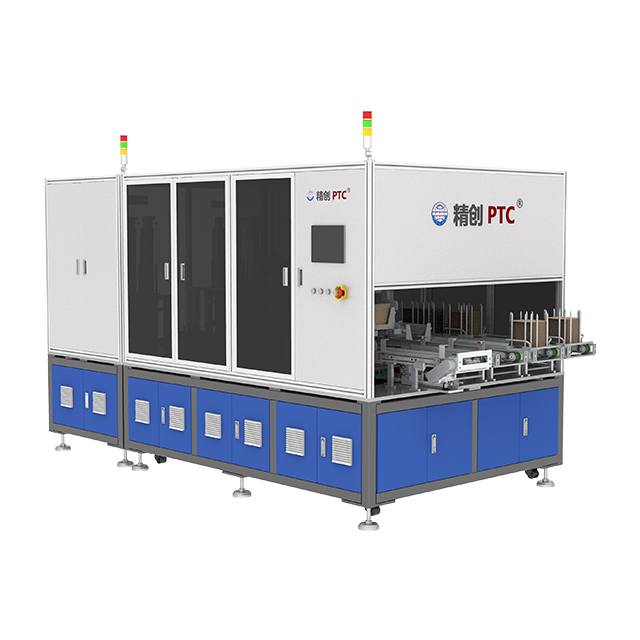

04-Ceramic Substrate Hipot Inspection Equipment

This equipment's innovative design combines precision testing with efficient material handling, making it ideal for high-volume ceramic substrate production environments where testing reliability and throughput are critical.
