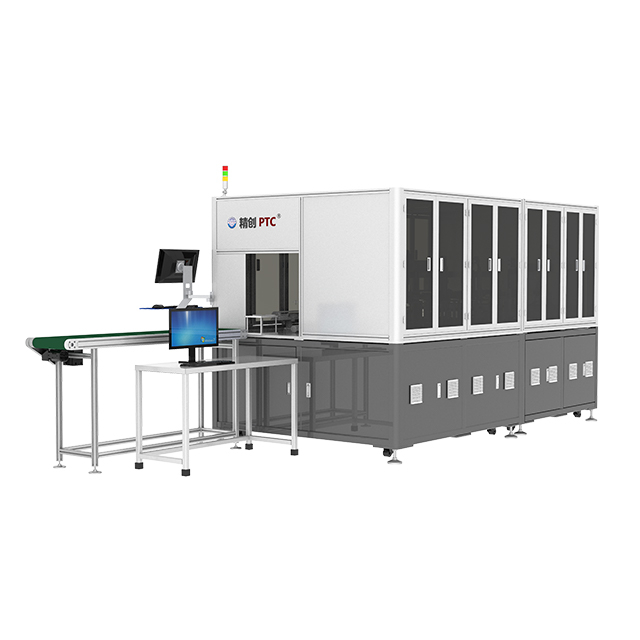

Singulation Equipment

It is used to automatically singulate the master copper-clad ceramic substrate into single units, greatly reduce manpower and improve singulating quality. The equipment eliminates edge defects ( such as micro cracks and chipping) which are very common with traditional mechanical scribing and breaking.

Availability:

Quantity:



Inquiry Add to Cart

Product Description

◇◇ Features ◇◇

● Material incoming method can be customized (it can be docked with the front station or equipped with a loading machine, or manual loading)

● Each singulate station adopts high-precision CCD positioning to ensure a high singulating yield;

● Strong applicability to quickly switch products of different specifications and types by adjusting the program formula;

● The multi-station combination method is used to singulate to ensure high efficiency of the whole equipment;

● The unloading method is flexible. The whole equipment can be used independently or dock with other equipments.

◇◇ Specifications ◇◇

Object size	Max: 190*138mm(±2mm)
Singulation efficiency	13s/pcs (without rib)
Singulation efficiency	16.5s/pcs (with rib)
Overall size	3400mm(L)2000mm(W)2000mm(H)
Weight	About 2000Kg
Power supply	Single-phase three-wire AC 220V+10%
Air pressure	0.4-0.7Mpa
Power	7KW
