Dimension, Thickness And Warpage Inspection Equipment

◇◇ Overview ◇◇

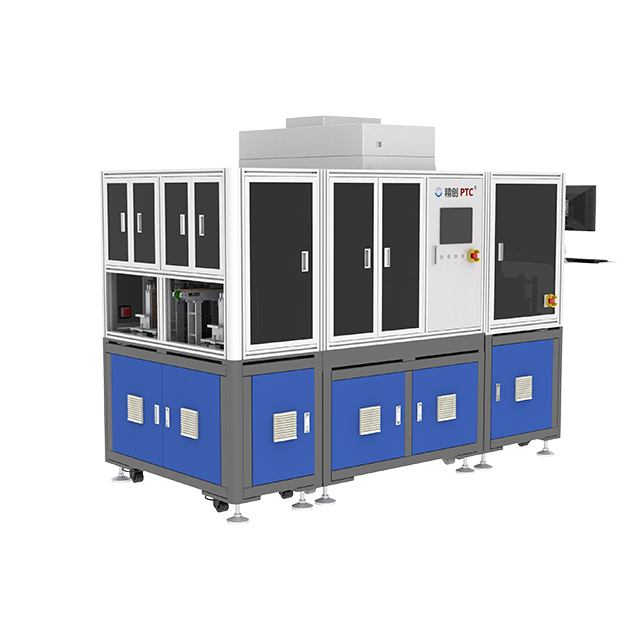

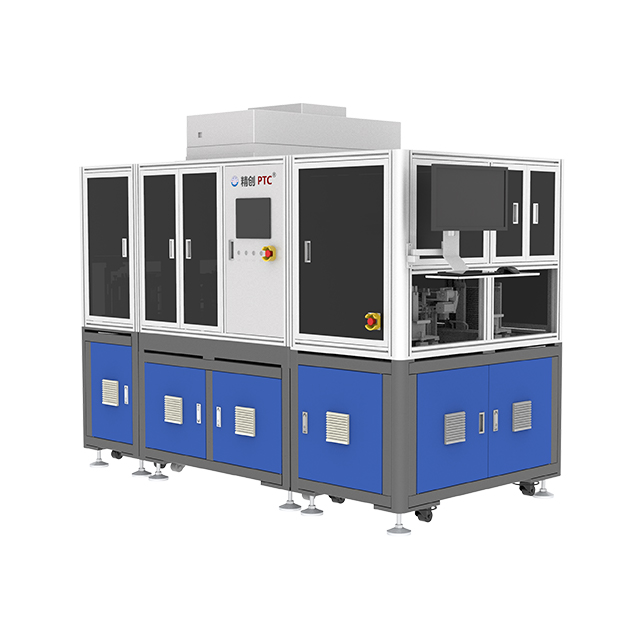

Automated 3D Measurement System for Ceramic Substrates

The equipment precisely measures critical parameters including dimensions, thickness, warpage characteristics. Sophisticated algorithm is employed for automatic product classification (OK/NG). The intelligent software interface provides real-time visualization of inspection data and position information. Manual re-inspection is available when required.

This Quality Assurance Visual Inspection Equipment represents an optimal solution for manufacturers seeking to upgrade their quality control processes for ceramic substrate production with significantly enhanced inspection efficiency, improved overall production throughput and reduced operational costs through full automation.

◇◇ Features ◇◇

•  Dual-cassette mode enables continuous loading without stopping the equipment;

•  When the buffer zone is short of materials, the equipment triggers an alarm to prompt operators for material replenishment;

• Real-time inspection process and final inspection results, sending OK, NG instructions;

• It can conduct statistics on production data, product information, batch information, quantity, and yield. It also supports data saving, queries, and export the data to Excel;

• The thickness measurement equipment with the function of data query, data export and data analysis. The software interface operates easily and can be connected to MES;

• User management: It enables the addition, modification, and deletion of login accounts;

• High efficiency, about 300 pcs/h;

•  Using marble platform to ensure the stability and accuracy of the equipment operation.
