◇◇ Overview ◇◇

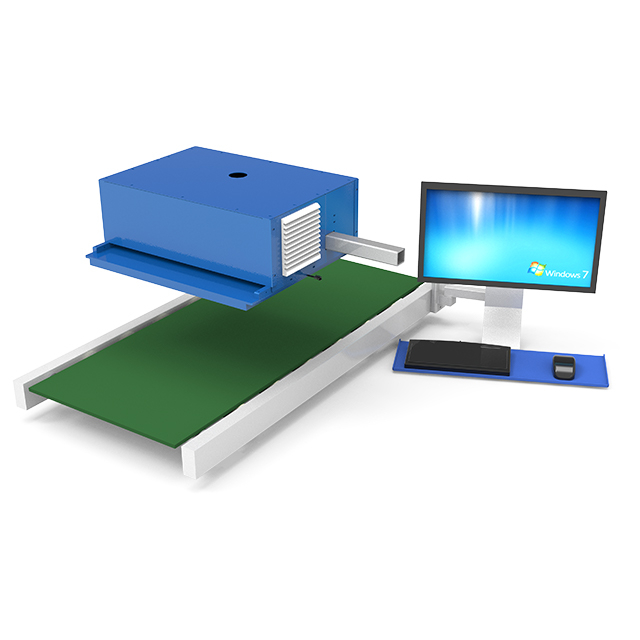

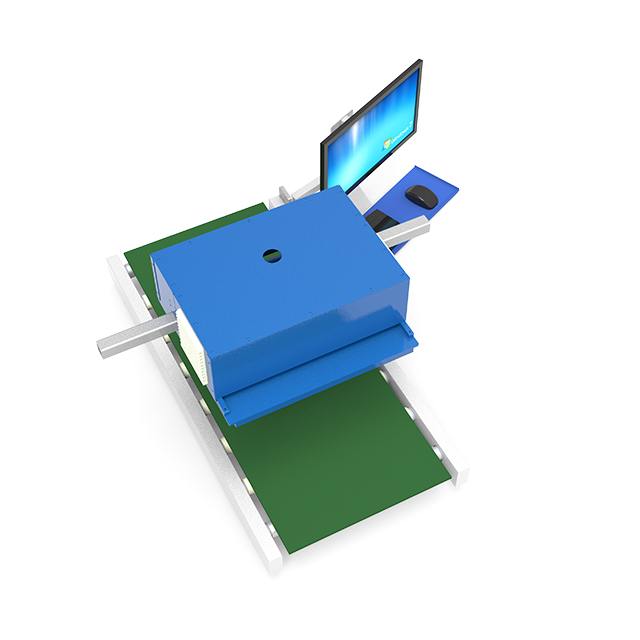

Compact Visual Inspection Equipment for Mesh Belt Cosmetic Inspection
The system integrates high-resolution visual inspection with powerful software analysis to ensure precise defect identification and classification. Manual re-inspection is available when required
By implementing this Image Analysis Visual Inspection Equipment, manufacturers can achieve reliable, automated quality control while optimizing production processes and reducing operational costs. It minimizes material waste and downtime through early defect detection.
◇◇ Features ◇◇
Compact mesh belt inspection system with space-saving and cost-effective design;
Detects critical defects: damage, holes, width reduction, and left and right deviation;
Real-time monitoring with instant alarm and automatic loading stop upon defect detection;
Intelligent software with data query/export/analysis and MES connectivity;
AI-powered defect recognition with auto-marking, model training, and false defect filtering to enhance first-pass yield.
◇◇ Technical Specifications ◇◇
Mesh belt running speed | 2.75mm/s |
Inspection interval | Adjustable , default: 30s |
Inspection item | Mesh belt damage, hole, width reduction left and right deviation |
Compatible equipment | Sintering furnace (Constant force furnace) |
Failure rate | ≤5% |
Software function | 1. Each furnace is equipped with a single monitor, displaying the real-time status of any mesh belt defects; 2. Reserved MES integration for defect photo and defect info upload; 3. Logs saving of operation status and system anomalies ; 4. User account management (add/edit/delete functions) 5. Reserved centralized display function |
Compatible product size | Mesh belt width:400mm Mesh belt thickness:10mm |
Other item | Inspected current display of mesh belt motor |
Camera installation position | The position of the mesh belt (inside the furnace) can be detected when there is no fixture covering the receiving end of the furnace. |
Installation requirement for display screen | Installed at the loading station, which is convenient for observation during manufacturing and maintenance. |
Power | About 0.5KW |
Voltage | 220V |
