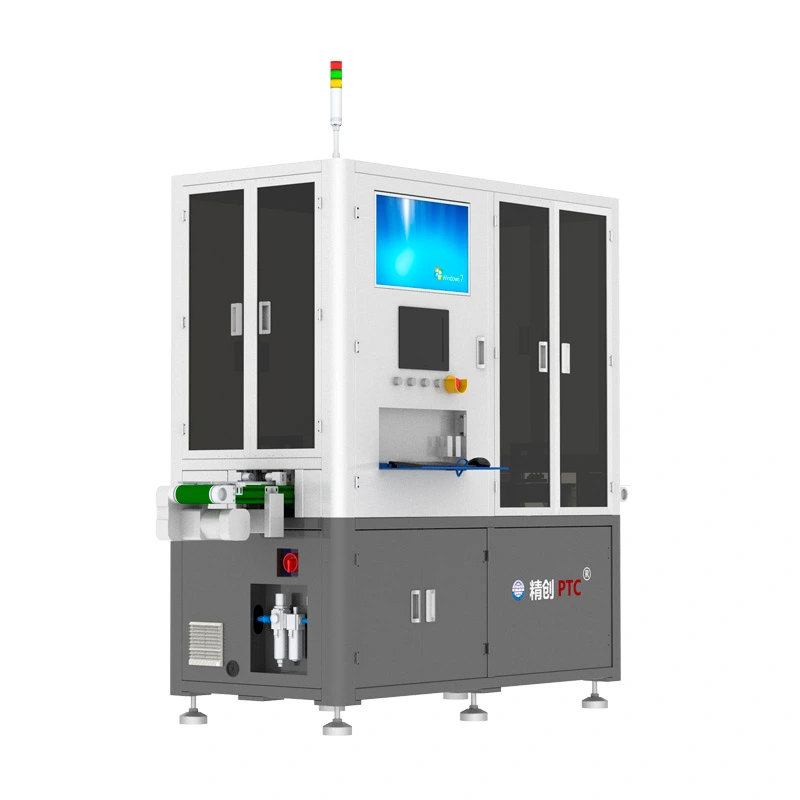

Quality inspection equipment can achieve online inspection of defects in plastic products with high efficiency and high quality, such as scratches, roll marks, dents, roughness, ripples, etc. This equipment can significantly reduce the intensity of manual labor, quality risks and losses, thus enhancing enterprise market competitiveness. It is applied to new energy field, information and communication equipment field, smart grid field, etc.
| Quantity: | |
|---|---|
Transfer servo gantry structure. The product flows on the belt line to complete the inspection.
The upper and lower cameras work simultaneously, thus ensuring high inspection efficiency.
The defect inspection equipment is supplied with customized software and deep learning algorithms, which are powerful and easy to use.
Technical Parameter | |
Sample size | 323mm(L)*136mm(W)*8mm(H) |
Inspection efficiency | 2s/pcs |
Missing rate | ≤ 0.5% ( defect size≥0.5mm) |
False rate | ≤15% ( the total number of false points in a single measurement≥100) |
Camera lens | 2K line scan camera |
Light source | 24V light source |
Dimension | 1660mm(L)*700mm(W)*2000mm(H) (light tower is not included) |
Overall weight | 500kg |
System | Windows10 |
Power supply | 1PH AC220V 50HZ |
Air pressure | 0.5MPA |
