◇◇ Overview ◇◇

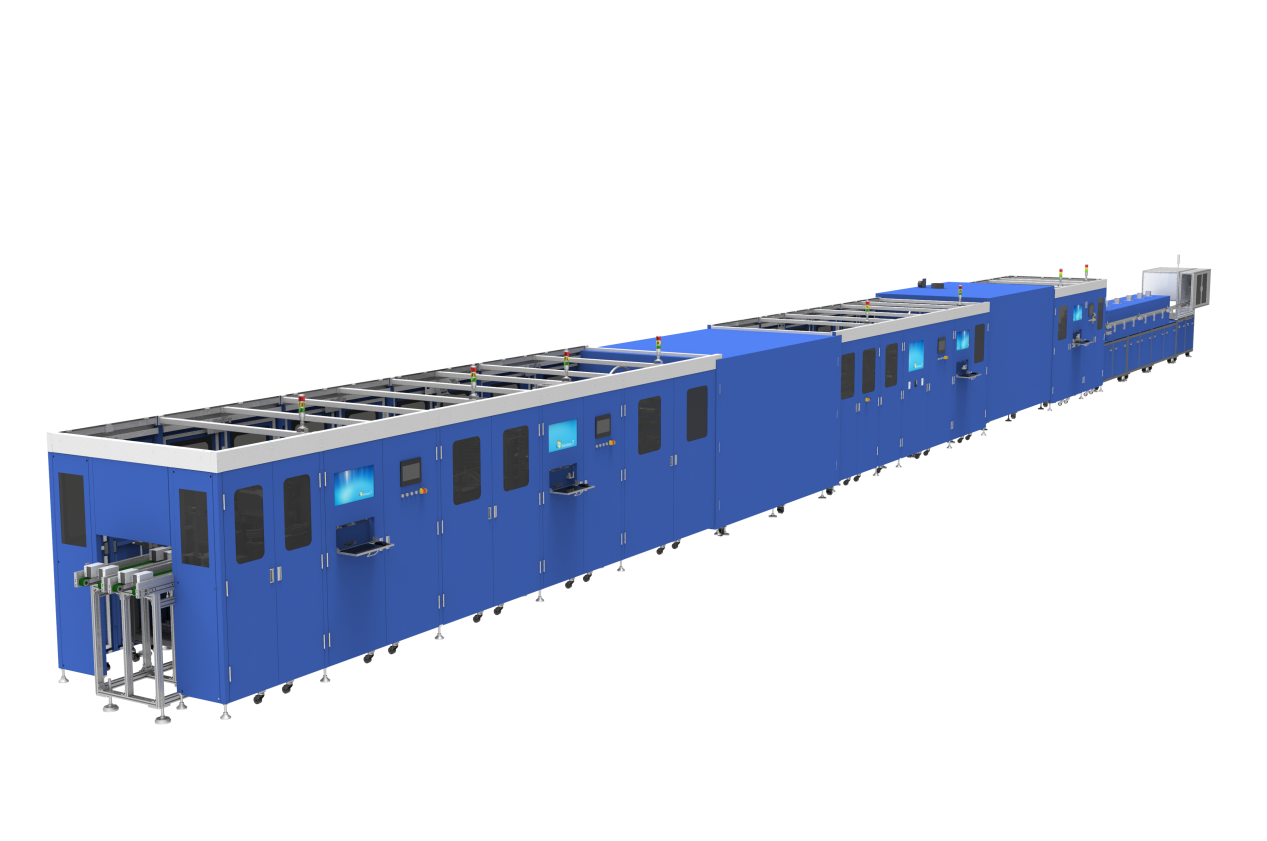

This fully automatic inspection equipment is specially developed for mass production of temperature sensors. It implements a complete standard process flow:
Sintering inspection →Oxide film cleaning→ Resistance testing → Degreasing cleaning → Insulation testing → Overall visual inspection → AGV docking for unloading
◇◇Features ◇◇
High efficiency: 3600pcs/h.
High detection capability: Powered by advanced AI capabilities, the system software automatically mark defects and performs model training, effectively filtering out false defects and significantly improving product first‑pass yield.
Full Automation – Integrated inline series connection, automatically interfaces with upstream equipment for material loading, automatically performs inspection tasks at all process stations along the line, supports AGV docking for automatic unloading.
High compatibility: Flexible line configuration to meet inspection needs for different product types, covering automatic inspection requirements for majority of this product category on the market.
Strong software function: The software offers data query, data export, and data analytics function. It can conduct statistics on production data, batch information and yield. The easily used intuitive interface supports seamless integration with MES systems.
◇◇ Specifications ◇◇

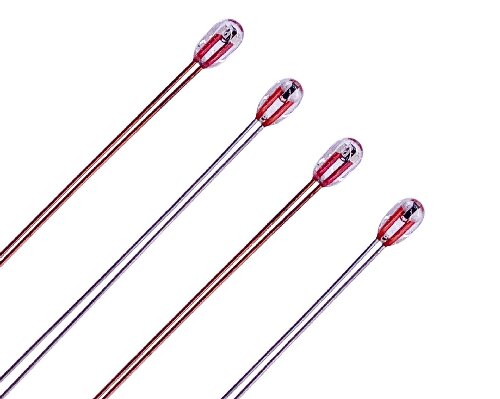

Detection function | Sintering inspection: Detect defects such as product presence, glass section length and diameter, lead presence, lead diameter, thermistor presence and exposed thermistor. |
Resistance testing: According to testing requirements, it can effectively detect various resistance statuses, including high resistance, low resistance, and normal resistance for each product. | |
| Insulation testing: Detect the insulation capability results of products. |
Visual inspection: position defects (horizontal deviation, vertical deviation, chip shift), lead bending, etc | |
Detection capability | Detection rate: 99% Overkill rate: 5% |
Utilization rate | ≥98% |
Unloading docking method | Trolley docks with AGV |
| Efficiency | 3600pcs/H |
| Equipment dimension | L*W*H: 23000*1800*2000mm |
