The singulation process represents the final, critical hurdle at the end of the back-end semiconductor manufacturing line. Errors at this late stage do not just waste raw silicon. They compound the cost of all prior upstream processes, multiplying financial losses for the facility. Facility directors and process engineers face a constant operational tension here. You must balance the aggressive demand for maximizing throughput (UPH) against the absolute necessity of minimizing mechanical stress, package contact damage, and overall yield loss.
Navigating this complex balance requires moving beyond legacy systems to adopt precision-engineered automated solutions. In this guide, we provide an objective framework to evaluate and shortlist singulation technologies. You will learn how to match specific equipment to application-driven requirements and assess verifiable performance metrics. Ultimately, this approach ensures you protect late-stage yield while optimizing your existing back-end automation workflows.
Yield Protection First: Modern singulation equipment must address package contact damage and thermal stress, as legacy systems struggle with advanced, fragile packaging.
Application-Driven Selection: The choice between mechanical, laser, and plasma singulation depends strictly on the package type (e.g., lead frame vs. substrate singulation).
Automation ROI: Upgrading to an automatic singulation machine shifts the operational bottleneck, requiring verifiable integration capabilities with existing back-end automation.
Hidden Implementation Factors: Consumable wear, calibration downtime, and facility retrofitting represent the highest implementation risks during procurement.
Singulation sits at the highest-value point of the entire manufacturing chain. When a component reaches this stage, it has already absorbed the costs of wafer fabrication, die bonding, wire bonding, and encapsulation. Scrap generated during the final cut represents the maximum accumulation of wasted materials and labor. Consequently, investing in high-quality semiconductor packaging tools directly protects your profit margins. A minor error rate here destroys the return on investment for the entire batch.
Legacy technology routinely creates production bottlenecks. Older mechanical saws rely on outdated spindle designs. These older systems generate excessive mechanical vibration. This vibration travels through the substrate, leading to microscopic chipping and internal delamination. Furthermore, early generation machines struggled with composite materials, often leaving burrs or fraying delicate layers. Process engineers historically spent hours tweaking parameters just to maintain borderline acceptable defect rates.
To move forward, procurement teams must establish strict success criteria. Do not evaluate machines based on generic marketing claims. Instead, baseline your evaluation on four critical metrics:
Units Per Hour (UPH): The real-world output speed under continuous operation.
Mean Time Between Failures (MTBF): The equipment's reliability and uptime predictability.
Cut Precision: The tolerance capabilities, typically measured in single-digit microns.
Defect Rates: The percentage of units rejected due to chipping, cracking, or cosmetic flaws.
Common Mistake: Relying solely on maximum UPH figures. A machine operating at peak speed often compromises cut precision, leading to unacceptable defect rates that negate the speed advantage.
Different packaging technologies demand entirely different cutting mechanisms. Selecting the right singulation equipment depends strictly on the physical and thermal properties of the materials you process.
Ball Grid Arrays (BGA) and Quad Flat No-leads (QFN) packages heavily utilize composite materials. These laminates blend copper traces, glass fiber, and resin. Substrate singulation requires exceptional precision to prevent substrate warp and composite fraying. The primary equipment fit remains high-speed spindle blade dicing. Modern systems pair ultra-thin resin or electroplated blades with advanced wash and dry integration. This integrated cleaning removes silicon dust and slurry immediately, preventing contamination on the package contacts.
Advanced packaging deals with ultra-thin layers and highly fragile low-k dielectrics. Mechanical blades generate too much stress for these delicate structures. Your requirements here include a zero-width kerf and the complete elimination of thermal damage. The ideal equipment fit involves laser dicing (either stealth dicing or laser ablation) or plasma dicing systems. Stealth dicing focuses a laser inside the silicon, creating a modified layer that cleanly separates upon slight expansion. Plasma dicing uses chemical etching to separate die simultaneously, offering unparalleled throughput for tiny components.
Traditional lead frame packages present a different challenge. You must manage thick molding compounds and mitigate metal deformation during the cut. Copper lead frames easily bend or burr if subjected to improper forces. Furthermore, extracting the separated packages often leads to contact damage. The standard equipment fit includes heavy-duty mechanical punches or specialized saw systems equipped with soft-handling robotic mechanisms. These tools provide the necessary force while cushioning the individual packages during sorting.
The chart below summarizes the optimal applications for each technology:
Package Type | Primary Material | Recommended Technology | Key Advantage |
|---|---|---|---|
BGA, LGA, QFN | Composite laminates, Resin | Spindle Blade Dicing | Clean edges, prevents composite fraying |
WLCSP, Ultra-thin Die | Silicon, Low-k dielectrics | Laser Stealth / Plasma Dicing | Zero mechanical stress, narrow kerf |
Molded Lead Frames | Thick molding compound, Copper | Mechanical Punch / Sawing | High physical force, prevents metal bending |

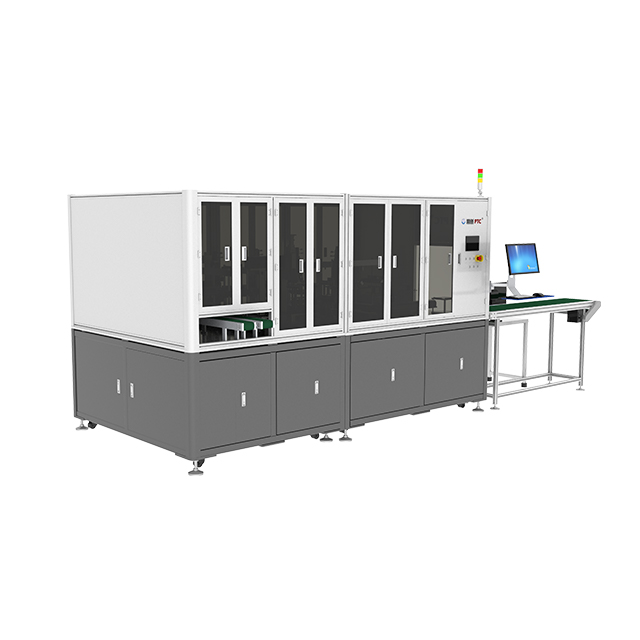

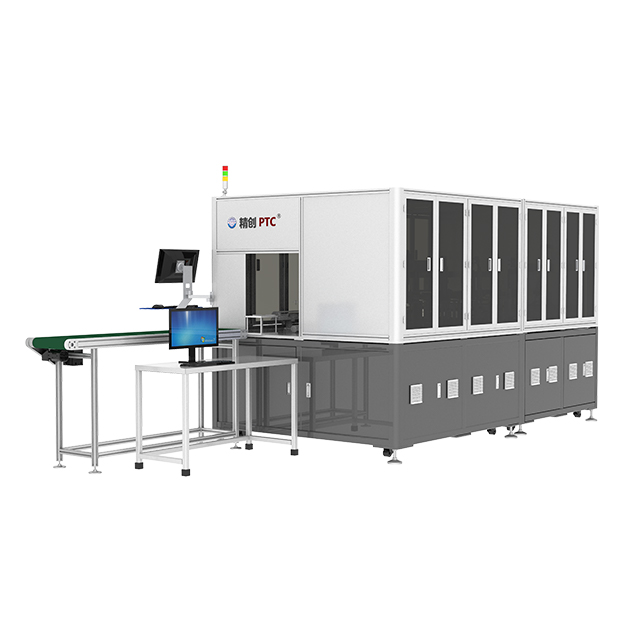

Procuring an Automatic Singulation Machine shifts the operational bottleneck in your facility. To ensure a smooth transition, evaluate potential platforms across several core technical dimensions.
Assess exactly how the equipment grips, moves, and releases the packages. Micro-scratches during handling degrade the final product quality. Look for vendor data demonstrating minimal package contact damage. Industry best practices favor non-contact Bernoulli chucks for handling delicate wafers. For molded packages, soft-grip robotic end-effectors prevent crushing forces. You must verify the handler can smoothly transfer diced units without dropping or misaligning them.
Never take vendor UPH claims at face value. High speeds often increase blade vibration or laser thermal spillage. Demand UPH metrics measured strictly against your facility's cut-quality tolerances. If your maximum acceptable chipping size is 10 microns, ask the vendor to prove their UPH specifically at that tolerance. Pushing the machine faster than its stable threshold leads to massive yield loss.
Modern back-end operations require seamless automation. Evaluate the machine's compatibility with SECS/GEM protocols. This integration ensures the tool communicates perfectly with your factory host system. The step-by-step flow must occur without manual intervention. A fully integrated system follows these automated steps:
Accepts input cassettes directly from molding or curing stations.
Scans barcodes and automatically loads the specific cutting recipe.
Executes the singulation process while monitoring blade wear or laser stability.
Cleans and dries the separated units in the wash station.
Outputs the final packages directly to sorting, testing, or tape-and-reel modules.
Advanced equipment relies heavily on integrated Automated Optical Inspection (AOI). The AOI system provides real-time kerf monitoring. If the blade begins to drift or wear unevenly, the vision system detects the micrometer shift. It then applies auto-alignment corrections before the next cut. This closed-loop feedback prevents catastrophic batch failures and significantly reduces operator intervention.
Buying the equipment is only the first step. Preparing your facility and your team represents a significant operational hurdle. Many facility directors underestimate the infrastructure prerequisites.
Your production floor must meet strict environmental and utility standards before installation. Common facility prerequisites include:
Ultra-Pure Water (UPW): Blade dicing wash stations consume massive volumes of UPW. You must ensure your plumbing can handle the flow rate and purity requirements.
Specialized Exhaust Systems: Laser ablation and plasma etching generate toxic fumes and particulate matter. Proper facility exhaust routing is mandatory for worker safety.
Vibration-Isolated Flooring: Heavy nearby machinery can send micro-vibrations through the floor. This disrupts the nanometer precision required for stealth laser dicing.
Stable Power Supply: Voltage fluctuations can crash sensitive AOI cameras or interrupt laser pulses mid-cut.
Quantify the daily operational realities of running the machine. Blade dicing systems consume resin or metal blades rapidly. You must calculate the expected blade wear rate based on your specific molding compounds. Laser systems do not use physical blades, but the laser source itself degrades over time and eventually requires an expensive replacement. Plasma systems consume specialized reactive gases continuously. Track these consumable metrics closely to anticipate your weekly operating expenses.
Migrating from legacy tools to a modern automated platform involves a steep learning curve. Operators must transition from manual dials to complex software interfaces. Address this skill gap early. Recipe creation requires an understanding of advanced material science. Optical sensor calibration demands patience and precision. Plan for extended downtime during the initial deployment weeks as your team familiarizes themselves with the new interface.
Best Practice: Assign two dedicated process engineers to shadow the vendor's installation team. This hands-on experience transfers crucial troubleshooting knowledge directly to your internal staff.
Selecting the right vendor dictates your long-term success. Evaluate potential partners based on verifiable performance, rigorous testing, and comprehensive support structures.
Look beyond the initial purchase price. Build a framework that calculates the true operational value over a five-year lifecycle. Factor in the upfront capital expenditure. Add the projected cost of daily consumables like blades. Include any necessary facility upgrades, such as new exhaust lines. Finally, model the financial impact of projected downtime. A cheaper machine that breaks down weekly costs exponentially more than a premium machine with high uptime.
Never purchase equipment based on generic showroom demonstrations. Vendors often use optimized, easy-to-cut dummy materials for marketing videos. Mandate a rigorous Proof of Concept (PoC). Ship your facility's exact substrate materials and package designs to the vendor. Require them to run a full production batch. Inspect the output internally using your own quality control standards. If the vendor cannot meet your chipping and throughput tolerances on your actual product, disqualify them immediately.
Equipment breaks. When it does, your vendor's response time determines your production loss. Evaluate the Service Level Agreements carefully. Establish strict criteria for vendor support. Demand guaranteed spare parts availability within your specific region. Verify their regional technician dispatch times. A technician should arrive within hours, not days. Furthermore, prioritize machines equipped with remote diagnostic capabilities. Often, a software engineer can securely log into your machine and fix alignment errors without setting foot in your factory.
Choosing the right technology for the final back-end manufacturing stage dictates your ultimate production yield. The ideal solution flawlessly balances aggressive throughput targets with zero-tolerance yield protection. As package architectures become smaller and more fragile, relying on legacy equipment becomes an unsustainable operational risk.
Facility directors should take immediate, action-oriented next steps. First, audit your current defect rates to identify exactly where mechanical stress causes failure. Next, categorize your upcoming product pipelines to determine if you need spindle, laser, or plasma technology. Demand absolute transparency from vendors during the evaluation phase. Force them to conduct rigorous PoC testing on your actual production materials. Finally, base your procurement decisions on proven production stability, verifiable automation integration, and robust long-term vendor support.
A: Blade dicing relies on high-speed physical grinding, making it excellent for thick composite substrates but prone to inducing mechanical stress. Laser singulation uses focused optical energy to melt or modify materials. It introduces zero mechanical stress but requires careful management of thermal impact. Lasers are generally preferred for ultra-thin wafers and fragile low-k dielectrics.
A: Traditional wafer dicing primarily cuts uniform silicon. Substrate singulation processes composite materials, such as the resin, fiberglass, and copper found in BGA or QFN packages. This composite nature makes substrates highly susceptible to fraying and warping, requiring specialized blade compositions, varied spindle speeds, and distinct handling mechanisms to prevent package damage.
A: To eliminate handling damage, look for equipment featuring non-contact Bernoulli chucks. These utilize airflow to lift components without physical touching. Additionally, prioritize soft-grip robotic end-effectors for placing finished units.
A: Calculate ROI by quantifying three major operational shifts. First, measure direct labor reduction as automated loading eliminates manual handling. Second, calculate the revenue gained from the UPH increase. Finally, and most importantly, quantify the financial savings generated by the scrap rate reduction. The combination of higher yield, fewer operators, and faster output typically justifies the initial expenditure.
