As semiconductor geometries shrink to 10nm and below, the threshold between a "harmless" cosmetic defect and a fatal functional flaw practically disappears. Minor scratches or stains on a wafer surface once seemed negligible. Today, they pose serious reliability risks under extreme thermal stress. Human inspection is no longer statistically viable for modern wafer and packaging volumes. Operators simply cannot process millions of microscopic components accurately. Constant eye fatigue naturally leads to missed anomalies.

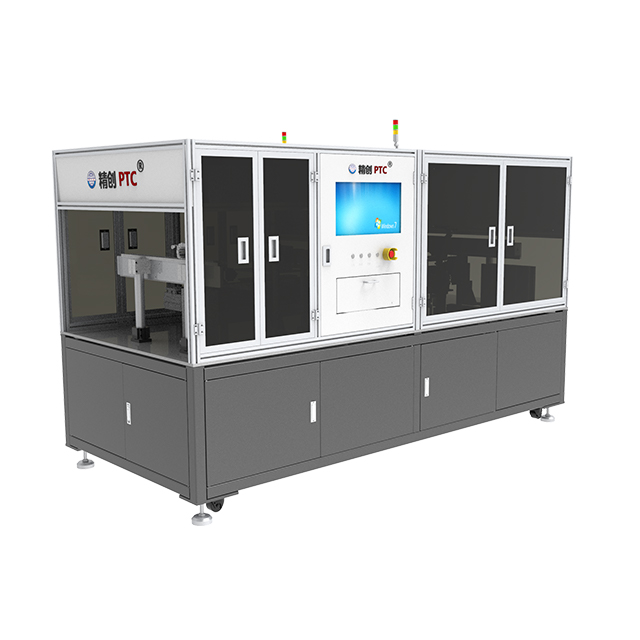

Upgrading to automated cosmetic defect inspection equipment is now a baseline requirement for high-yield manufacturing. However, calculating the true return on investment requires a deeper look. You must look beyond simple defect capture rates. You need a system that balances accuracy, production throughput, and data traceability perfectly. This article explores how advanced detection systems protect yield and redefine quality control in modern fabrication facilities.
Yield Protection: Automated surface defect detection prevents superficial anomalies (micro-scratches, stains, chipping) from compounding into downstream failures.
Overkill Reduction: Advanced systems differentiate between critical defects and acceptable variance, minimizing false positives (overkill) that waste viable silicon.
Traceability: Modern visual inspection equipment integrates directly with MES/YMS, providing closed-loop feedback for root-cause analysis.
AI vs. Traditional: The shift from rule-based AOI (Automated Optical Inspection) to deep learning models is fundamentally changing how manufacturers evaluate inspection solutions.
We often treat cosmetic flaws as harmless. This assumption is dangerous today. The line between aesthetic and functional defects blurs constantly. A tiny chip on the silicon edge might look like a simple aesthetic issue. However, it creates a severe stress concentration point. When the component undergoes thermal cycling, this point fails. The flaw expands into a microscopic crack. Eventually, it destroys the functional circuitry. Passivation layer variations or slight discolorations often indicate underlying chemical imbalances. You cannot afford to ignore these seemingly superficial anomalies in high-power applications.
False negatives happen when a system misses a defect. We call this "underkill." Escaping cosmetic defects carry heavy consequences. They slip into the final product undetected. Field failures occur shortly after deployment. Customers issue costly Return Merchandise Authorizations (RMAs). More importantly, your vendor qualification status takes a massive hit. Institutions like the Automotive Electronics Council strictly enforce reliability standards like AEC-Q100. They demand zero defects. Missing a single scratch damages your reputation entirely.
False positives are equally destructive. We call this "overkill." Traditional inspection tools are often hyper-sensitive. They flag acceptable material variances as critical defects. This artificially depresses your yield rates. You end up discarding perfectly viable silicon. Alternatively, you force operators into manual secondary reviews. This wastes time and highly skilled labor. It defeats the entire purpose of factory automation. You need smart systems to reduce this overkill drastically.
The industry landscape is changing rapidly. Tier-1 automotive and aerospace clients demand absolute perfection. They now mandate strict traceability across the supply chain. They enforce absolute zero-defect tolerances for all semiconductor components. A simple visual check no longer satisfies compliance audits. You must provide undeniable digital proof of component integrity. Automated inspection gives you this verifiable data trail effortlessly.
Batch-sampling was once the industry standard. It is now completely obsolete. Modern inline processing systems inspect 100% of components. They do this at full production speeds. You no longer face bottlenecks at the inspection station. The equipment processes thousands of units per hour continuously. This comprehensive coverage guarantees immediate defect containment. You catch anomalies before they move to expensive packaging stages.
Modern manufacturing operates at the nanoscale. Automated systems use advanced optics to match this scale. They combine brightfield, darkfield, and interferometry techniques. These lighting methods reveal surface anomalies down to the nanometer level. They can detect a 10nm particle deposition instantly. Robust cosmetic defect inspection ensures nothing escapes unnoticed. You identify microscopic deviations before they compound into major functional errors.
Inspection tools do more than sort good chips from bad chips. They function as powerful data collection nodes. The system aggregates defect location data across hundreds of wafers. It identifies repeating patterns easily. For example, recurring edge scratches might indicate a misaligned robotic handling arm. You spot upstream equipment drift immediately. You fix the root cause instead of just filtering the symptoms continuously.
Relying on manual QA engineers limits your factory growth. Visual sorting is tedious and highly error-prone. Modern equipment shifts these highly skilled workers away from repetitive tasks. They move into process improvement and advanced defect analysis. You maximize the value of your engineering team. They focus on solving complex yield challenges instead of staring through microscopes all day.
Strict algorithms govern traditional rule-based AOI systems. You program exact parameters into the software. These systems excel with predictable, highly structured components. They handle strict geometric tolerances perfectly. However, they lack adaptability. They struggle with unpredictable organic shapes. Varied backgrounds confuse the algorithms easily. Varying reflectivity across the wafer surface triggers false alarms constantly.
Deep learning changes the inspection paradigm entirely. AI-powered models do not rely on hardcoded rules. They handle complex surfaces and low-contrast defects beautifully. They excel at minimizing false positives. The algorithms learn from massive datasets. You feed them examples of "good" and "bad" components. They adapt to acceptable batch-to-batch variations naturally. You avoid constant, tedious parameter tuning. They understand context much like a human operator.
Sometimes you need both approaches simultaneously. Hybrid systems offer the ultimate automated solution. They combine deterministic rule-based measurements for strict metrology. Simultaneously, they utilize AI-driven surface defect detection for cosmetic anomalies. You get perfect geometric verification and intelligent anomaly recognition in a single pass. This versatility makes them highly sought after in modern advanced packaging fabs.
System Category | Best Application Scenario | Key Technical Advantage | Main Limitation |
|---|---|---|---|
Rule-Based AOI | Predictable, highly structured components. | Perfect for strict geometric tolerances and metrology. | Struggles with organic shapes and varied reflectivity. |
AI / Machine Learning | Complex surfaces and low-contrast anomalies. | Adapts to batch variations; minimizes false positives. | Requires extensive, labeled defect datasets to train. |
Hybrid Systems | Advanced packaging and strict compliance environments. | Combines precise metrology with intelligent anomaly detection. | More complex software integration and deployment phases. |
You must balance speed and detail carefully. High optical magnification reveals smaller defects clearly. However, it significantly reduces the camera's field of view. This slows down the inspection process considerably. You must assess if the system maintains the necessary UPH (Units Per Hour) at the required resolution. You cannot sacrifice production throughput for unnecessary magnification levels.
Lighting makes or breaks your inspection process entirely. Semiconductor materials are highly reflective by nature. Standard lighting creates harsh glare and hides critical defects. You must evaluate the system's illumination architecture thoroughly. Look for multi-angle and multi-spectral lighting capabilities. Advanced tools use 3D imaging to penetrate complex surfaces. Excellent visual inspection equipment uses specialized wavelengths to bypass reflectivity issues entirely. This maps the exact topography of a surface defect accurately.
Hardware represents only half the equation. The software ecosystem dictates real-world usability and factory integration. The equipment must integrate seamlessly with your existing data infrastructure. To ensure optimal interoperability, you must verify several key software requirements before deployment:
Ensure strict SECS/GEM compliance for factory-wide machine communication.
Verify API readiness to enable custom data extraction and reporting.
Test the integration protocols with your current Manufacturing Execution Systems (MES).
Confirm smooth data flow mapping into your existing Yield Management Systems (YMS).
AI-based systems deliver incredible inspection results. However, they are exceptionally data-hungry tools. They require extensive, accurately labeled datasets to train effectively. You must feed them thousands of edge-case examples. You need clear, categorized images of scratches, stains, and chipping. Building this initial image library takes significant time and engineering effort.
Do not expect instant perfection on day one of deployment. Acknowledge the initial setup and calibration phase. The system needs time to learn your specific product parameters. During this calibration period, overkill rates may temporarily spike. The machine learning model errs on the side of caution initially. As it ingests more production data, the accuracy improves dramatically. You must plan production schedules around this learning curve.
Upgrading legacy production lines introduces physical challenges. Modern systems capture massive amounts of high-resolution data continuously. Network infrastructure upgrades are often necessary to handle these massive image data payloads. You might also need physical footprint adjustments on the factory floor. Custom handling integration is frequently required for older robotic loaders. Thorough semiconductor inspection planning prevents costly deployment delays.
Buyers must navigate vendor claims very carefully. Always demand a rigorous Proof of Concept (PoC) before committing to a platform. A successful PoC requires strict guidelines to ensure accurate real-world performance evaluation. Follow these steps during your shortlisting process:
Provide your specific, active production wafers for the testing phase.
Include known, highly difficult edge-case defects in the sample batch purposefully.
Refuse generic vendor test samples or pristine demonstration wafers entirely.
Measure both the defect capture rate and the false positive rate independently.
Cosmetic defect inspection is no longer just about aesthetics. It is a critical defense mechanism for semiconductor reliability. It serves as the foundation for modern yield optimization and compliance. Failing to adopt advanced detection capabilities leaves your supply chain vulnerable to downstream failures.
System evaluations must evolve past simple hardware specifications. The most effective evaluation strategy ignores claimed megapixel counts. Instead, it focuses on the system's proven ability to reduce both false positives and manual review time. Intelligent software matters just as much as premium optics.
Take a hard look at your current inspection processes today. Conduct an immediate audit of your current overkill rates and false positives. Identify the specific surface anomalies causing the most manual rework. Request targeted system demos based entirely on those problematic defect types.
A: Functional defects cause immediate electrical failure in the component. Cosmetic defects, such as surface stains or minor micro-scratches, do not immediately halt function. However, they indicate dangerous process drift. They severely risk premature field failure under thermal stress over time.
A: AI handles manufacturing variation much better. It understands visual context. This drastically reduces false positives caused by harmless color variations or acceptable material textures. Strict rule-based algorithms frequently trip up on these minor, acceptable differences.
A: Yes, but it requires highly specialized optics. You need deep UV or electron beam inspection rather than standard optical visual inspection. These advanced methods capture sub-10nm defects but come with significant cost and throughput trade-offs.
