As manufacturing tolerances shrink to microscopic levels, manual inspection is no longer viable for high-stakes components. The human eye simply cannot consistently catch sub-millimeter defects. This reality forces process engineers and QA managers into a critical decision. They must constantly weigh the benefits of fully integrated inline systems against standalone, highly specialized inspection machines. Both have distinct roles on the modern factory floor.
Our purpose here is to objectively evaluate where discrete inspection units fit into your quality control architecture. We will step past vendor hype to focus strictly on production realities. You need solutions tailored to actual workflow challenges. This guide breaks down operational differences, key triggers for adoption, and essential evaluation criteria.
You will learn how to balance throughput constraints against extreme resolution needs. We will also cover how to structure a proof of concept to validate system performance. Ultimately, you will gain the insights needed to deploy the right technology at the right stage of your manufacturing process.
Single unit AOI equipment is purpose-built for discrete, high-precision inspection, ideal for high-mix/low-volume (HMLV) production or complex component auditing.
It excels in highly detailed cosmetic defect inspection and specialized semiconductor AOI where inline throughput speeds would compromise image resolution.
The primary evaluation tradeoff is between inspection cycle time and defect detection accuracy (reducing false-positive rates).
Successful implementation requires rigorous Proof of Concept (PoC) testing using known-defect samples rather than relying solely on spec sheets.

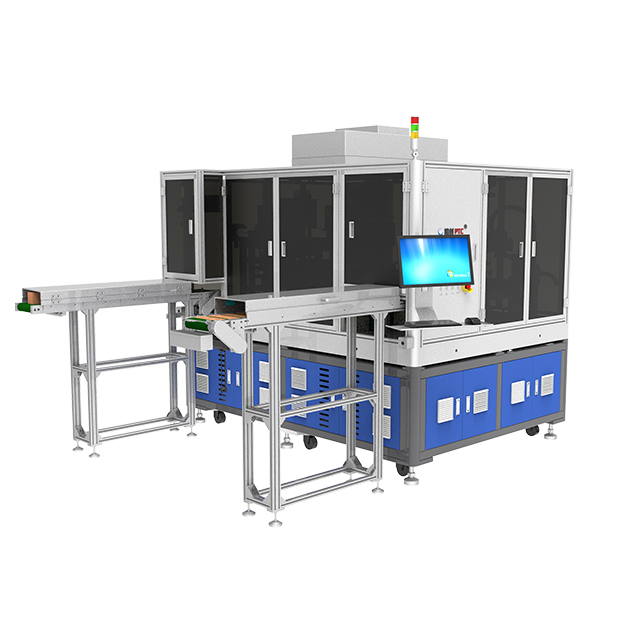

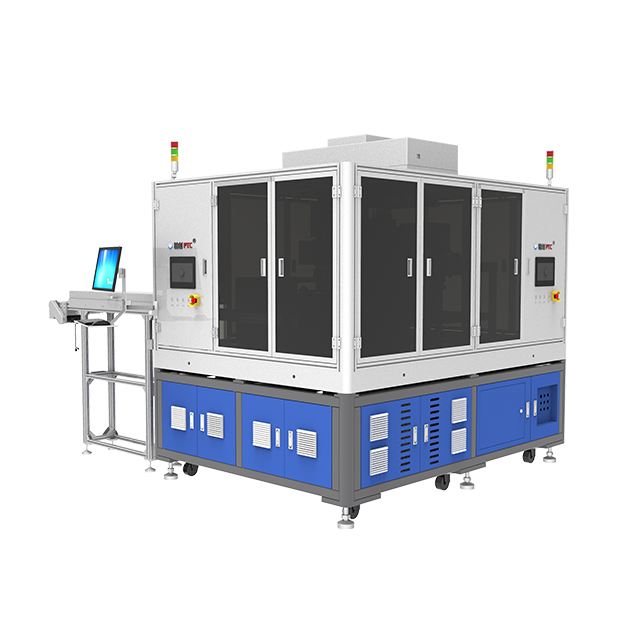

To understand the value of single unit AOI equipment, you must define its category. These machines operate independently from the main continuous production line. Inline systems sit directly over a moving conveyor belt. They must keep pace with rapid upstream manufacturing speeds. Standalone units break this limitation. Operators or robotic arms load individual components into them. This physical separation unlocks a new tier of precision.
The mechanism of action centers on localized, highly controlled handling. Let us outline how the equipment isolates a discrete component.
Isolation: The machine secures the single unit inside a dedicated, enclosed inspection chamber.
Illumination: It applies complex, multi-angle lighting sequences without interference from ambient factory light.
Capture: High-resolution cameras capture multiple static images from various optical focal points.
Processing: The system dedicates intense computational power to analyze the static images for microscopic flaws.
This decoupling from line-speed constraints provides the primary advantage. A continuous conveyor demands rapid image capture. Rapid capture limits exposure time and lighting complexity. A standalone machine stops the clock. It allows for advanced multi-angle dome lighting. It supports heavy 100+ megapixel camera sensors. Furthermore, it enables highly intensive AI-driven image processing. You gain the freedom to prioritize absolute accuracy over sheer throughput.
Facilities rarely abandon inline systems entirely. Instead, they deploy standalone units strategically. Certain production scenarios demand off-line precision. Recognizing these triggers prevents costly quality escapes.
First, consider complex cosmetic defect inspection. High-value consumer electronics and medical devices require flawless aesthetics. You must identify micro-scratches, subtle discoloration, or minute edge chips. These flaws often hide under flat light. They require specialized, angled illumination to create shadows. Inline systems cannot accommodate these lengthy lighting sequences. Standalone units cycle through multiple light spectrums on a stationary part to reveal hidden cosmetic flaws.
Second, semiconductor AOI and advanced packaging heavily rely on these systems. Inspecting individual dies or delicate wire bonds is notoriously difficult. Precision severely outweighs raw throughput in this sector. A single missed defect in a complex IC package destroys significant value. Discrete inspection provides the magnification needed for sub-micron verification.
Third, High-Mix, Low-Volume (HMLV) environments benefit immensely. Contract manufacturers and custom PCB shops frequently change product runs. Inline systems require complex line changeovers. Standalone units offer superior flexibility. An operator simply calls up a different software recipe. They can switch from inspecting an automotive sensor to an aerospace control board in seconds.
Finally, these machines serve as powerful off-line auditing tools. Fast inline systems often flag marginal defects. They generate false positives to stay safe. Process engineers use standalone units for deep failure analysis. They pull flagged components off the line. They run them through the intensive standalone system. This verifies the defect and determines its root cause.
Selecting the right machinery requires balancing competing technical capabilities. You must look beyond standard specification sheets. Evaluating performance requires aligning machine capabilities with your specific production realities.
You face an inherent tradeoff between image clarity and speed. Higher megapixel cameras capture more detail but generate massive files. Processing these files increases the inspection time per unit. You must calculate an acceptable cycle time based on your quality yield requirements.
Chart: Optical Tradeoff Comparison | ||
Inspection Parameter | High Resolution (Standalone Focus) | High Speed (Inline Focus) |
|---|---|---|
Camera Megapixels | 60MP - 100MP+ | 12MP - 25MP |
Image Processing Time | 2 to 10 seconds per part | Under 1 second per part |
Defect Capture Rate | Extremely High (>99%) | Moderate to High (90-95%) |
Primary Use Case | Auditing, HMLV, Fragile parts | Mass production, low variance |
Guide your team to test edge cases. If a defect takes ten seconds to verify, ensure that delay does not starve downstream assembly.
Hardware captures the image. Software actually makes the decision. Evaluate the software ecosystem critically. Legacy systems use algorithmic, rule-based vision. They look for specific pixel contrasts. Modern systems leverage AI and Machine Learning. AI systems understand acceptable variance in product appearance.
You must critique the true impact of false-call rates. False rejects (overkill) force human operators to manually re-inspect parts. This wastes engineering hours. AI-driven vision significantly reduces overkill. The software learns over time. It distinguishes between a harmless surface reflection and a critical scratch. Ask vendors to demonstrate their false-call reduction metrics during live tests.
Do not ignore how the machine physically touches the product. Poor mechanical handling negates excellent optical performance. Evaluate the gripping and clamping mechanisms. Standalone units often use custom fixtures or vacuum chucks to hold the unit flat.
Stress the importance of damage-free handling. Semiconductor components and optical lenses are highly fragile. A harsh clamp will cause micro-fractures. Review the z-axis clearance. Ensure the robotic handler or manual insertion tray operates smoothly. Vibration during image capture will ruin the inspection. The mechanical base must dampen ambient factory floor vibrations.
A physically separate machine must not become a digital island. "Standalone" refers only to physical placement. The system must still feed data into your broader network.
Ensure seamless integration with your Manufacturing Execution System (MES). When the standalone unit flags a defect trend, it must instantly alert upstream stations. If ten consecutive parts show a solder bridge, the MES should automatically halt the screen printer. Evaluate the machine's API capabilities. Ask how it handles secure data handoffs and historical defect archiving.
Deploying new technology always introduces friction. Recognizing these implementation realities prevents project delays. You must account for resource demands beyond the initial hardware purchase.
The operator training burden is a primary challenge. Flexible automated optical inspection requires highly skilled personnel. They must program new inspection recipes. Setting up lighting sequences and defining pass/fail thresholds is complex. Do not assume any line worker can manage this. You must allocate engineering hours for comprehensive training.
Best Practice: Assign two dedicated programmers to the equipment. This prevents a knowledge silo if one employee leaves the company.
Calibration drift poses another significant risk. High-precision optics are sensitive. Ambient factory conditions affect them daily. Nearby heavy machinery causes floor vibration. Open bay doors alter ambient lighting. These factors degrade image quality over time. You must implement strict, daily calibration protocols. Operators must run golden boards (perfect samples) every morning to verify optical alignment.
Finally, address floor space and workflow bottlenecks. Standalone stations require dedicated physical footprints. They also create logistical challenges. You must physically move batches of units to and from the station. This movement creates Work in Progress (WIP) traffic jams. Carts of untested products will sit waiting for inspection. Map out the physical material flow before installation. Ensure the inspection station sits adjacent to the relevant production node to minimize transport time.
Never base your final decision on a glossy brochure. Vendor specifications reflect perfect laboratory conditions. Your factory floor is not a laboratory. You need a rigorous Proof of Concept (PoC) to validate performance. A structured PoC reveals the actual capabilities of the single unit AOI system.
First, demand a "known-defect" run. Do not let vendors test only obvious failures. Supply them with a curated mix of samples. Include "golden" (perfect) parts. Add marginal, edge-case defects. Include flaws that your current human inspectors struggle to catch. Force the machine to prove its sensitivity. Watch closely to see if it rejects the golden samples while catching the marginal flaws.
Second, evaluate the recipe setup time. Software usability is crucial. Hand the vendor an entirely new component during the PoC. Start a timer. Watch exactly how long it takes them to program it from scratch. Notice how many parameters they manually tweak. If programming takes two days, the system fails the HMLV flexibility test. Modern systems should program simple geometries in under an hour.
Third, assess post-sale support. High-end optics occasionally fail. Software requires periodic patching. Do not accept vague support promises. Highlight the importance of local Service Level Agreements (SLAs). You need guaranteed response times. Ensure the vendor has field service engineers located near your facility. Ask about their remote diagnostic capabilities for fast troubleshooting.
Common Mistake: Failing to test the exact material finish. A shiny metal component reflects light differently than a matte plastic one. Always run PoCs on your actual production materials.
Standalone optical inspection does not replace your fast, inline systems. It serves as a necessary, highly specialized complement. It delivers the extreme precision required for fragile, complex, or high-value components. By isolating the product from conveyor vibrations, you unlock unparalleled diagnostic clarity.
To maximize your quality control investments, keep these takeaways in mind:
Audit your current false-reject rates. High overkill indicates your inline system is struggling.
Map your HMLV changeover times. If programming causes bottlenecks, a flexible off-line unit will restore throughput.
Never skip the known-defect PoC. Test the system using your hardest-to-spot flaws.
Ensure your dedicated team receives extensive training on AI vision tuning and recipe management.
Take action today by gathering your most problematic defect samples. Challenge three leading vendors to inspect them. Their results will clearly indicate if a standalone machine is your optimal next step.
A: The main difference lies in physical placement and the speed-versus-resolution tradeoff. Inline systems sit on conveyors to match continuous line speed. Single unit systems sit off-line. They prioritize maximum precision on discrete parts, allowing for complex lighting and longer image processing without slowing down upstream production.
A: No. Automated optical inspection strictly relies on light and cameras to evaluate visible surface conditions. It cannot see through solid materials. Finding internal flaws, such as hidden voids or broken inner traces, requires Automated X-ray Inspection (AXI) technology.
A: Setup time varies significantly by component complexity and software architecture. Older systems might require several days to fine-tune algorithms. However, modern AI-assisted vision systems can reduce recipe creation from days down to hours, or even minutes for simple, repetitive geometries.
A: Return on investment generally occurs within 12 to 18 months. This timeline is calculated by factoring in the reduction of manual inspection labor, the sharp decrease in false rejects (overkill), and the prevention of highly valuable, defective units escaping to the end customer.
