Manufacturers of passive components currently face a serious challenge regarding rising manual quality control costs. Relying on human visual inspection creates severe bottlenecks during high-volume production runs. Operator fatigue leads to inconsistent sorting, which ultimately harms brand reputation. Thermistor production requires stringent appearance and dimensional validation before final packaging. Both NTC and PTC thermistors need physical verification because electrical functionality does not guarantee long-term mechanical stability. You must catch physical flaws on the factory floor before parts ship to clients.
This article serves as a decision-stage evaluation guide for production managers and quality engineers. We will explore exactly what this specialized machinery does on the production line. You will understand the implementation realities of automated vision systems. We will also outline how to evaluate the right automated machinery for your specific facility requirements.
Defect Coverage: Thermistor AOI machinery specifically isolates surface defects, coating inconsistencies, and terminal malformations that electrical testing misses.
False-Call Management: The defining metric of high-end appearance detection AOI equipment is its ability to balance high defect capture rates with low false-reject (overkill) rates.

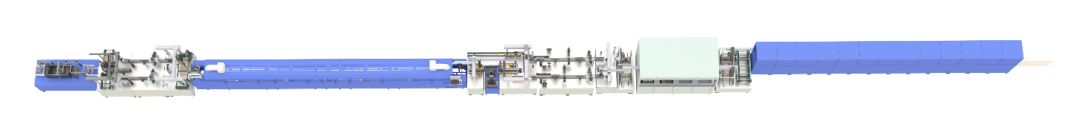

Line Integration: Modern systems transition from simple offline sampling to inline inspection, adapting to complex geometries like Matsuba components without degrading cycle times.
Vendor Evaluation: Shortlisting should prioritize optical resolution, algorithmic flexibility (AI vs. rule-based), and integration support over pure theoretical processing speed.
Electrical testing easily validates basic component function. However, functional tests cannot spot microscopic physical flaws. Electrical tests miss micro-cracks, epoxy voids, and subtle lead oxidization. These hidden defects often cause premature field failures when parts undergo thermal cycling. They also trigger downstream assembly issues when your clients attempt automated PCB population. You need dedicated vision systems to isolate these mechanical risks.
Modern visual inspection systems handle multiple critical checks simultaneously. They scan components in milliseconds to ensure mechanical integrity. You can categorize these capabilities into three main detection zones.
Coating and Encapsulation Verification
Thermistors rely on stable epoxy or glass encapsulations. The cameras identify bubbles, chips, or uneven coatings on the thermistor head. Bubbles trap moisture. Moisture eventually causes internal shorts. Uneven coatings alter the thermal response time of the sensor. High-speed cameras verify that the encapsulation covers the component uniformly.
Lead and Terminal Inspection
Bent pins destroy PCB insertion yields. The system measures pitch and span with micron-level accuracy. It instantly detects bent, oxidized, or deformed wire leads. Lead oxidization prevents proper solder wetting during reflow. Visual systems identify discoloration associated with oxidization, separating bad parts before packaging.
Marking and Color Coding
Many passive components use color bands or tiny alphanumeric prints for identification. The vision system validates these markings. It checks color bands for strict legibility and accuracy. Faded prints or incorrect color sequences trigger an immediate rejection.
Modern supply chains demand comprehensive audit trails. High-quality appearance detection AOI equipment digitizes all defect data. It captures images of every rejected part and logs the specific failure mode. This data creates the strict traceability required for ISO and IATF compliance. Automotive and medical sectors demand this level of data logging. By digitizing defects, your quality team can perform root-cause analysis on upstream molding or dipping processes.
Standard flat-SMD inspection is a relatively straightforward process. Flat components sit perfectly still on a conveyor belt. Complex 3D component inspection presents entirely different engineering challenges.
Traditional flatbed cameras fail when inspecting odd-form parts. Wire-leaded thermistors possess three-dimensional depth. They do not sit flat. Specialized Matsuba component AOI equipment handles these delicate, specific geometries beautifully. These systems use custom handling trays and precision indexing mechanisms. They stabilize wire-leaded or custom-terminal components without causing mechanical stress. The cameras maintain precise focal depths across uneven surfaces, capturing both the bulky head and the thin wire leads simultaneously.
You cannot inspect highly curved glass surfaces with standard flat lighting. Standard lighting creates massive glare. Multi-angle illumination solves this specific problem. Advanced machines sequence different lighting arrays to eliminate shadows and normalize reflections on curved thermistor heads and metallic pins.
Coaxial Lighting: Highlights flat, reflective surfaces to check for surface scratches.
Low-Angle Lighting: Casts shadows across textures to emphasize edge chips and micro-cracks.
Dome Lighting: Provides soft, indirect illumination to remove harsh glare from glossy glass encapsulations.
The system pulses these lights in rapid succession. The camera captures multiple frames under different lighting conditions. The software then merges these images to form a complete geometric profile of the component.
Selecting the right machinery requires a structured approach. You must map specific hardware features directly to your desired production outcomes. Avoid buying machines solely based on marketing specifications.
Resolution vs. Cycle Time
Higher megapixel cameras easily detect smaller micro-cracks. However, processing a 25-megapixel image takes milliseconds longer than processing a 5-megapixel image. Multiply this delay by 20,000 components per hour, and line bottlenecks quickly emerge. You must evaluate the sweet spot for your required Units Per Hour (UPH). If your tolerance allows for minor cosmetic blemishes, a lower-resolution, higher-speed camera might maximize your throughput.
Algorithmic Approach
Software drives the actual inspection. You can choose traditional rule-based algorithms or Deep Learning vision models. Rule-based systems rely on strict geometric parameters. They excel at measuring lead pitch. Deep learning models excel at finding subjective surface defects like subtle coating variations. AI drastically reduces false positives because it understands acceptable variations in resin color.
Table: Algorithmic Approach Comparison
Feature | Rule-Based Algorithms | Deep Learning (AI) Vision |
|---|---|---|
Setup Time | Fast for simple geometries | Requires longer training time |
Defect Flexibility | Rigid; fails on unexpected variances | Highly adaptable to subtle variations |
Best Application | Strict dimensional measurements (lead span) | Subjective appearance defects (coating color) |
False Call Rate | Higher on complex reflective surfaces | Significantly lower post-optimization |
Handling Mechanisms
The way the machine moves the component is critical. Systems use gravity-fed tracks, tape-and-reel mechanisms, or custom indexing dials. Gravity tracks offer high speed but risk chipping fragile glass coatings. Indexing dials provide gentle, precise handling but cost more. Your chosen handling system must match your upstream and downstream flow. It must never cause mechanical damage to the thermistor during the inspection process.
Deploying automated vision systems on the factory floor always presents hurdles. You should anticipate these challenges early to ensure smooth adoption by your production staff.
Many vendors promise plug-and-play simplicity. In reality, optical inspection requires patience and tuning. Factory environments introduce variables like vibration, ambient light changes, and dust.
New AOI equipment often generates high false-reject rates initially. The system rejects perfectly good parts because it detects microscopic, non-functional anomalies. We call this the overkill phase. You need a dedicated tuning period to optimize the inspection thresholds. Operators must teach the software which cosmetic flaws are acceptable.
It takes time to build a robust defect library. You cannot simply turn the machine on and expect perfection. You must feed the system thousands of examples.
Scan a baseline of known-good components to establish acceptable variance.
Introduce known-bad components with specific defects (cracks, bubbles, bent leads).
Adjust lighting intensities for different resin colors (e.g., black vs. green epoxy).
Run a pilot batch and manually review all rejected parts to fine-tune the algorithm.
Optical clarity degrades rapidly in industrial environments. Dust settles on camera lenses. Stray epoxy sticks to handling tracks. You must outline strict maintenance assumptions. Lens cleaning, track alignment, and dust mitigation are daily necessities. If you ignore physical maintenance, your false-reject rate will climb steadily over time.
Justifying the capital expenditure requires clear success metrics. You need to prove that the equipment delivers tangible production benefits.
What does a successful deployment actually look like? Industry best practices target a strict zero defect escape rate. No defective parts should reach your customer. Simultaneously, you should aim for a false call rate under 2% post-optimization. Furthermore, a successful rollout should deliver a 30% reduction in manual inspection labor costs. You can reallocate human inspectors to higher-value tasks, such as root-cause analysis.
Do not accept standard vendor test pieces during a demonstration. Vendors tune their demo machines perfectly for their own pristine samples.
Request proof-of-concept (POC) testing using your absolute worst-case production samples.
Include parts with borderline cosmetic defects to test the AI's nuance.
Evaluate the software usability closely during the demo.
Ask yourself: Can your current line operators adjust thresholds easily? Or does the interface require a dedicated vision engineer on staff? High-end machinery should feature an intuitive, operator-friendly interface.
Map out your specific defect Pareto chart before contacting vendors. Know exactly which defects cause the most customer complaints. Define your exact UPH requirements. Understanding your baseline data guarantees a better matching process. Thorough preparation helps you select the most appropriate thermistor AOI equipment for your specific production line.
Automated optical systems completely shift your quality control paradigm. You move away from subjective human sampling toward objective, scalable 100% inspection. This transition protects your brand reputation and prevents costly downstream assembly failures for your clients.
The best equipment choice carefully balances optical precision with practical material handling. Prioritize systems that offer flexible lighting, intuitive AI software, and gentle indexing mechanisms. By focusing on low-maintenance, highly adaptable machinery, you ensure long-term line stability and consistent product quality.
A: No. AOI detects appearance and mechanical defects. It must be paired with electrical testing (resistance, B-value) for comprehensive quality assurance.
A: While highly dependent on the product, industry standards typically target a false-call rate of under 2-3% post-optimization, with a strict 0% defect escape rate.
A: Advanced systems utilize programmable multi-spectral or multi-angle lighting, combined with AI vision models, to normalize reflections and isolate actual defects from optical glare.
