In semiconductor packaging, microscopic contamination on lead frames creates severe manufacturing challenges. You often face critical defects like wire bond failures, die attach voiding, and mold compound delamination. These hidden defects compromise final device reliability and drastically drive up scrap rates on the production floor. To solve this pervasive issue, engineers deploy a vacuum plasma cleaner immediately before the die attach and wire bonding steps. This specialized equipment alters the substrate surface chemically and physically at a molecular level.
It effectively removes invisible residues and activates the metal surfaces for optimal adhesion. In this article, we objectively evaluate how these vacuum systems function under production conditions. We also explore integration realities and outline key selection criteria for lead frame processing. You will learn the crucial mechanical differences between vacuum and atmospheric systems. We will also guide you through choosing the right process gases to perfectly match your specific metallurgical requirements.
Vacuum plasma cleaners perform three critical functions: micro-cleaning organic residues, reducing metal oxides, and increasing surface energy (wettability).
Unlike atmospheric systems, vacuum plasma penetrates intricate 3D geometries and stacked magazines isotropically without causing thermal damage.
Buyers must evaluate chamber design, RF generator frequency, and automated handling capabilities to match their specific throughput and yield requirements.
Total Cost of Ownership (TCO) is heavily influenced by vacuum pump maintenance, cycle time limits, and specific process gas consumption.
Semiconductor manufacturing processes inevitably leave behind various microscopic residues. You cannot see these trace contaminants under normal inspection. However, they severely disrupt subsequent bonding and encapsulation processes. A vacuum plasma cleaner addresses these complex adhesion issues through three primary mechanisms.
Upstream wafer processing and dicing operations leave unwanted organic materials scattered across lead frames. You will frequently encounter stubborn carbon-based contaminants and trace photoresist residues. Furthermore, outgassed epoxies from earlier curing stages often settle back onto the substrate. Traditional wet chemical cleaning struggles to remove these thin films completely. Chemical de-scumming in a vacuum chamber successfully removes these stubborn organic films. Highly reactive gas radicals bind to the carbon atoms resting on the lead frame. This continuous chemical reaction creates volatile byproducts like carbon dioxide and water vapor. The integrated vacuum pump then continuously exhausts these harmless gases out of the chamber. This precise chemical extraction leaves you an exceptionally clean base material ready for bonding.
Metals naturally oxidize when exposed to ambient factory air over time. Copper lead frames are particularly vulnerable to rapid, uncontrolled oxidation. This naturally occurring oxide layer acts as a rigid electrical insulator. It actively prevents reliable intermetallic bonding during the sensitive wire attach phases. Physical and chemical plasma processes effectively strip away these problematic oxidation layers. They successfully expose the pure, uncompromised metal underneath the oxidation. This exposed pure metal is absolutely critical for establishing strong, highly conductive wire bonds. Without removing these dense oxides, you risk long-term device failure and severe performance degradation in the field.
Lead frames often possess extremely low surface energy initially. This low surface energy prevents liquid adhesives from spreading evenly across the surface. You need die-attach epoxies and encapsulation molding compounds to flow uniformly without trapping air bubbles. Surface activation solves this flow problem by dramatically increasing the substrate's surface energy. The active plasma introduces polar functional groups to the top layer of the metal surface. This chemical alteration transforms the material from a liquid-repelling hydrophobic state to a liquid-absorbing hydrophilic state. Enhanced wettability ensures uniform adhesive flow and solid adhesion across the entire lead frame. It directly prevents catastrophic package delamination during field use and thermal cycling.
Engineers often debate between vacuum and atmospheric plasma technologies when setting up a line. Each technology serves distinct manufacturing needs and fits different production layouts. However, packaging applications usually favor vacuum systems for several overriding technical reasons.
Vacuum systems process the entire lead frame uniformly from every possible angle. The low-pressure environment allows the active plasma gas to expand isotropically in all directions. It easily penetrates deep into the remarkably tight tolerances of batch-loaded magazines. You get highly consistent cleaning on every microscopic surface of every individual component. Atmospheric systems operate quite differently in practice. They are strictly line-of-sight devices spraying plasma downward. They only clean surfaces positioned directly beneath the active plasma nozzle. They cannot clean complex 3D geometries, undercuts, or densely packed magazines effectively.
Ultra-thin lead frames are highly susceptible to sudden thermal warpage. High localized temperatures induce severe stress and physically distort the metal framework. A vacuum plasma cleaner operates at significantly lower overall temperatures. The unique low-pressure environment creates a stable cold plasma state. This state mitigates the risk of sudden thermal damage to thin substrates. Atmospheric systems often generate substantial localized heat during operation. They require careful conveyor speed regulation and strict distance controls to prevent warping delicate substrates.
Vacuum chambers offer absolute precision regarding environmental control. You can precisely mix specialized gases tailored to exact metallurgical requirements. Typical specialized mixtures include varying ratios of Argon, Oxygen, and Hydrogen. You can adjust these gas ratios finely to balance physical bombardment and chemical cleaning. Atmospheric systems severely lack this precise environmental control. They primarily rely on standard compressed air or pure inert gases like Nitrogen. They cannot safely handle reactive mixtures containing Hydrogen due to severe explosion risks in open air environments.
Comparison of Plasma Technologies
Feature | Vacuum Plasma | Atmospheric Plasma |
|---|---|---|
Penetration | Isotropic (Full 3D Coverage) | Line-of-sight (2D Surface Only) |
Thermal Impact | Low (Cold Plasma) | Moderate to High |
Gas Flexibility | High (Argon, Oxygen, Hydrogen) | Low (Compressed Air, Nitrogen) |
Batch Processing | Excellent for dense magazines | Poor (Best for single inline units) |
You must evaluate your specific production line needs before purchasing. Choose vacuum systems for high-density, batch-level uniformity where precision matters most. They excel when you work sensitive materials and highly complex geometries. Conversely, choose atmospheric systems for high-speed, inline processing. They work best for flat, structurally simple geometries moving rapidly on a continuous conveyor belt.
Gas selection heavily influences your overall process yield and reliability. Different gases trigger entirely different chemical and physical reactions inside the chamber. You must carefully match the chosen gas recipe to your specific lead frame material.
Argon is a heavy, completely noble gas. It cleans substrates exclusively through physical ablation, also known in the industry as sputtering. The high-frequency RF field rapidly accelerates heavy Argon ions toward the grounded substrate. They strike the contaminated surface carrying immense kinetic energy. This violent physical impact literally knocks solid contaminants off the metal framework. Argon remains completely inert throughout the entire process. It does not chemically react or accidentally oxidize the metal. It is strictly best for removing heavy, stubborn contamination through brute kinetic impact.
Oxygen creates a highly reactive chemical plasma environment. It excels remarkably well at a process known as chemical ashing. Free Oxygen radicals aggressively attack and break down complex organic residues. They efficiently turn solid carbon-based contaminants into easily exhausted vapor states. However, using pure oxygen poses significant risks for certain sensitive metals. It can rapidly and deeply oxidize copper or silver-plated lead frames. You must use it highly cautiously on these specific materials to avoid destroying their solderability.
Forming gas is a structurally safe, non-explosive mixture of Argon and Hydrogen. It performs vital chemical reduction on heavily oxidized metal surfaces. This particular mixture is the undisputed industry standard for treating bare copper lead frames. Hydrogen radicals actively strip oxygen molecules away from the surface metal oxides. They magically convert the resistive copper oxide back into pure, conductive copper. They achieve this impressive feat without leaving any new organic residues behind. The added Argon helps stabilize the overall plasma generation and provides mild, complementary physical cleaning.
Modern packaging systems rarely rely on a single, isolated gas type. Advanced engineers use tiered, multi-step recipes to maximize yield and efficiency. A very common approach involves running a short, initial Oxygen step. This quickly ashes away thick organic residues left from dicing tape. A subsequent Argon/Hydrogen step immediately follows the Oxygen phase. This second step quickly removes any fresh oxides formed during the harsh Oxygen phase. This intelligent two-step process perfectly balances aggressive organic cleaning speed alongside vital oxide prevention.
Selecting the right vacuum equipment requires highly careful technical evaluation. You cannot simply buy off-the-shelf units without assessing your parameters. You must perfectly align the machine's specifications directly to your product requirements. Consider the following crucial criteria when reviewing vendor proposals.
Electrode Configuration (Direct vs. Downstream): Electrode placement fundamentally dictates the plasma's overall aggression level. Direct plasma systems place the lead frame right between the two active electrodes. This configuration allows highly aggressive physical cleaning through direct ion bombardment. It works exceedingly well for robust substrates lacking delicate components. Downstream, or remote, plasma isolates the main generation zone entirely. It flows only the reactive radicals into a completely separate processing chamber. This configuration heavily protects sensitive active ICs from direct ion bombardment. It also virtually eliminates any catastrophic electrostatic discharge (ESD) damage risks.
RF Generator Frequency: The generator frequency heavily dictates the physical behavior of the excited ions. A 13.56 MHz frequency creates a dense, highly reactive, and uniform plasma. It perfectly balances chemical reaction rates and physical cleaning power, acting as the absolute standard choice for most modern semiconductor applications. Alternatively, a 40 kHz frequency allows individual ions to gain much higher kinetic energy. It delivers much heavier, aggressive ion bombardment to the surface. This is particularly useful for aggressive physical etching applications. However, it presents a much higher risk of damage for delicate surface structures.

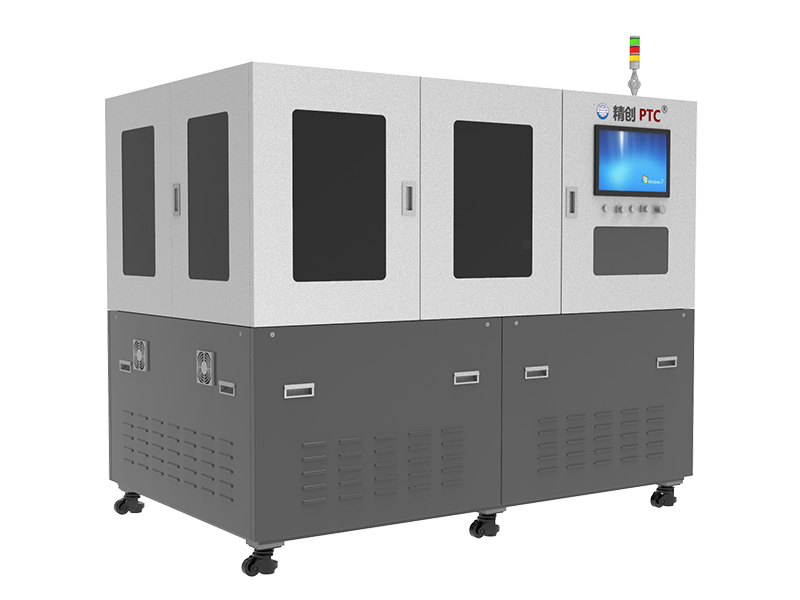

Automation and Footprint: You must critically evaluate how the equipment fits your overall factory flow. Standalone batch systems can process multiple loaded magazines simultaneously. However, they require dedicated operators for manual loading and unloading operations. Inline automated handling systems, known as strip handlers, offer true magazine-to-magazine automation. They feed individual strips smoothly through the chamber automatically via robotic indexing. You must rigorously analyze your daily throughput goals to prevent costly cycle-time bottlenecks.
Chamber Material and Design: Manufacturers typically construct vacuum chambers utilizing either aluminum or stainless steel. Aluminum offers excellent thermal uniformity and naturally resists certain corrosive halogen gases. Stainless steel provides unmatched long-term durability and ultra-high particulate cleanliness. You must also closely inspect the internal shelf configurations. Efficient shelf designs maximize magazine capacity without ever sacrificing critical plasma uniformity.
Integrating plasma technology inevitably introduces specific manufacturing and operational challenges. You cannot simply install the machine and ignore process physics. You must proactively manage these technical risks to maintain continuously high yields.
Vacuum systems inherently take considerable time to complete a full cycle. You must meticulously factor in the mechanical vacuum pump-down time. You also need to heavily account for the slow venting sequences after processing concludes. These necessary mechanical steps significantly extend the total cycle time compared to atmospheric methods. You must calculate these times accurately and simulate them. Failing to do so will severely starve your downstream bonding equipment.
The external vacuum pump acts as the beating heart of the entire system. It faces constant, daily exposure to highly reactive process gases. It also regularly ingests particulate byproducts physically removed from the lead frames. You must schedule and execute regular maintenance to prevent catastrophic mechanical failures. This strict routine includes replacing pump oil frequently or servicing dry pump seals. Neglecting pump maintenance directly leads to inconsistent chamber pressure levels and ultimately poor cleaning results.
More plasma exposure is certainly not always better for your product. Excessive processing times can irreversibly damage your sensitive product. High power levels cause severe surface roughening on the metal framework. This microscopic roughening might directly interfere with precision wire bonding capillaries. You also risk the dangerous redeposition of sputtered materials back onto the cleaned substrate. Additionally, over-processing can cause thermal degradation to any existing die-attach epoxies. You must establish and lock down strict, validated process windows.
You cannot simply plug in a generic machine and start producing reliable parts. You must formally request a Proof of Concept (PoC) from potential vendors. Provide them directly your exact lead frame strips for realistic testing. You must then carefully verify the cleaning results using quantitative metrics. Rely heavily on contact angle testing to definitively prove enhanced wettability. Perform rigorous wire bond shear tests to absolutely guarantee improved mechanical adhesion. Strict validation ensures the chosen equipment actually meets your specific production needs.
Vacuum plasma systems serve as a critical yield-protection investment for modern semiconductor operations. They are far more than just a basic, optional cleaning step. They actively engineer the substrate surface at the atomic level to guarantee reliable bonding. By utilizing these systems, you eliminate invisible organic contaminants and reduce problematic metal oxides. You also dramatically increase surface wettability, which is essential for downstream encapsulation flow.
Before initiating any formal vendor evaluations, you must establish a baseline of your current defect rates. Carefully quantify your existing delamination issues and track your daily wire bond lifts. This historical data gives you a clear, undeniable benchmark for tracking future improvements.
Next, compile a comprehensive matrix of your specific production requirements. Document your current lead frame materials, specific gas restrictions, and target daily throughputs. Note your factory footprint constraints clearly to avoid purchasing oversized equipment. Use this precise, detailed data to request targeted sample testing from reputable equipment manufacturers. Taking these deliberate steps ensures a smooth, highly successful equipment integration.
A: A typical cycle usually takes 5 to 15 minutes. This duration factors in the initial pump-down time, the active plasma phase, and the final venting sequence. The exact time depends heavily on your required treatment performance..
A: Yes, it can. Using incorrect process gases, like pure oxygen, will rapidly oxidize silver plating. Additionally, excessive RF power causes severe physical sputtering damaging the delicate surface. Strict recipe optimization and proper gas selection are mandatory to protect these sensitive materials.
A: You can use several standard quantitative methods. Water contact angle goniometry measures surface energy directly. Dyne test fluids provide a quick visual assessment of wettability. Finally, post-process wire pull and shear strength testing confirm the actual mechanical integrity of the resulting bonds.
