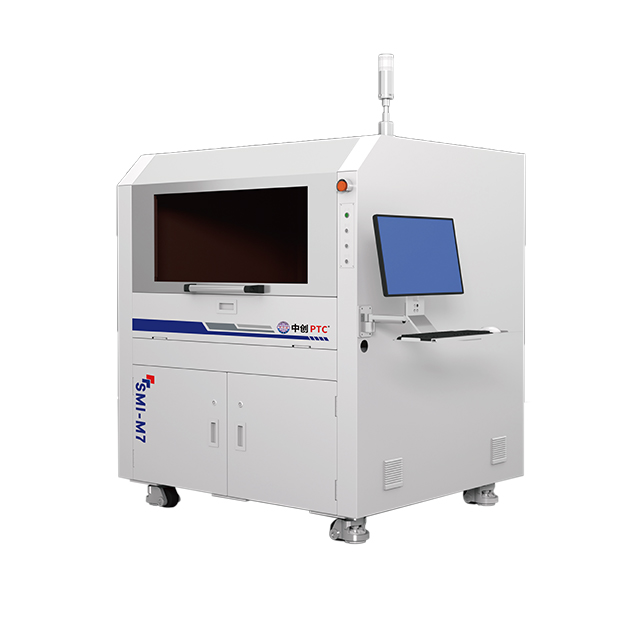

The margin for error in precision manufacturing is shrinking rapidly. Legacy sampling methods simply fail. They cannot meet modern sub-micron tolerance requirements. You can no longer rely on isolated quality control checks. Production today demands continuous, inline monitoring. A comprehensive digital graphic detection system bridges this critical gap effectively. This technology shifts facilities from reactive sorting to proactive process control. It detects anomalies instantly before they ruin entire batches. This article provides operations and quality leaders a practical framework. We will explore evaluating and implementing advanced visual inspection technologies. You will learn to justify these upgrades confidently. Our guide helps you navigate complex vendor capabilities safely. You can avoid falling for exaggerated marketing claims. Read on to transform your quality assurance strategy.
Strategic Alignment: Connecting CAD models directly to real-time measurement reduces inspection bottlenecks and accelerates time-to-market.
Technical Viability: System selection must balance optical resolution with production throughput; 100% inspection is only viable if processing speeds match line speeds.
Risk Mitigation: The highest hidden costs stem from environmental variables (vibration, lighting) and calibration drift, requiring rigorous pilot testing.
ROI Focus: Justification hinges on reducing false-reject rates, minimizing scrap, and lowering long-term total cost of ownership (TCO), rather than just initial hardware costs.
The business problem starts at the microscopic level. Component geometries become increasingly complex every year. Traditional coordinate measuring machines (CMMs) offer incredible accuracy. However, they are simply too slow for high-volume production. They create massive bottlenecks on the factory floor. You cannot inspect every single part when a CMM cycle takes five minutes. You need faster alternatives immediately. Modern digital graphic detection solves this precise problem. It captures high-resolution dimensional data in milliseconds. This speed allows for comprehensive inspection without slowing output.
Next, consider the operational friction inside your facility. Engineers design perfect models using modern CAD software. Translating these pristine digital models into actionable factory-floor criteria is difficult. Operators often struggle interpreting complex engineering tolerances. A modern detection setup eliminates this costly disconnect. It ingests CAD data directly into the vision controller. It compares physical parts against digital twins automatically. This approach removes human interpretation errors entirely. Quality standards remain completely objective across all production shifts.
We must also redefine basic success criteria. Old quality metrics focused on detecting defects post-production. Finding a bad part at the end of the line wastes money. True manufacturing success means predicting and correcting deviations in real-time. You want to spot a tooling drift early. You adjust the CNC machine before it produces scrap. This proactive approach saves expensive materials and skilled labor. It ensures consistent product quality and protects your brand reputation. Predictive monitoring transforms quality control into a profit center.
Modern facilities deploy automated visual inspection across diverse applications. These robust tools handle far more than simple measurement tasks. They protect material integrity and classify nuanced surface defects. Let us explore three high-impact manufacturing scenarios.
Real-Time Dimensional Verification: Facilities use high-speed image acquisition constantly. Cameras measure critical dimensions on active production lines. They compare physical outputs against CAD baselines instantly. This happens without slowing down the conveyor belt. Caveat: You must balance the field of view (FOV) and measurable precision carefully. A wider FOV captures more of the part at once. However, it sacrifices pixel density and micron-level accuracy. We recommend calculating your exact tolerance needs before selecting lenses. Telecentric lenses often solve parallax errors during this process.
Digital Image Correlation (DIC) for Stress and Strain: DIC tracks micro-deformations on component surfaces. It monitors parts actively under thermal or mechanical loads. You apply a fine speckle pattern to the material surface. The cameras track how these speckles shift under applied stress. This application is crucial for aerospace and medical device manufacturing. Material integrity in these fields literally saves lives. DIC provides visual heat maps of stress concentrations.
Complex Surface Defect Categorization: Basic pass/fail metrics are no longer sufficient. You need systems capable of classifying specific anomalies accurately. They must distinguish between shallow scratches, deep pits, and coating inconsistencies. Deterministic, rule-based algorithms excel here. They often outperform AI-driven models in strictly regulated environments. Rule-based systems provide clear, auditable logic. AI models can sometimes act as unpredictable black boxes. Regulators prefer deterministic outcomes for compliance documentation.
Comparison Chart: FOV vs. Precision Trade-off
Application Focus | Field of View (FOV) | Precision Level | Best Use Case |
|---|---|---|---|
Macro Assembly | Large (>500mm) | Low to Medium (0.1mm) | General part presence, packaging verification |
Component Machining | Medium (100-500mm) | High (0.01mm) | Dimensional checks, accurate hole placement |
Micro-Electronics | Small (<100mm) | Ultra-High (<1 micron) | Semiconductor inspection, micro-crack detection |
Selecting your next image inspection system requires rigorous evaluation. You cannot rely on glossy brochure specifications alone. You must align hardware capabilities against actual production realities. First, assess camera resolution, framerates, and lens distortion carefully. High-resolution sensors capture stunning geometric detail. However, massive image files take significantly longer to process. Evaluation Rule: Do not over-spec optical resolution unnecessarily. It will throttle your required frame-processing time. Complete inline inspection fails if image processing lags behind line speeds. You must optimize the balance between detail and speed.
Next, scrutinize software and algorithmic reliability closely. You must choose between proprietary vendor software and open-architecture libraries. Proprietary tools offer easier initial setup and dedicated support. Open-architecture libraries provide immense flexibility for custom algorithm development. Test the software against realistic part-presentation variations. It must handle unexpected rotation, scale changes, and lighting shifts gracefully. Brittle algorithms fail when parts arrive slightly skewed. Robust software uses pattern-matching tools to locate features regardless of orientation.
Finally, map out system interoperability requirements comprehensively. Your new equipment cannot operate in network isolation. It must communicate seamlessly across your entire factory infrastructure. Assess integration protocols for your existing Product Lifecycle Management (PLM) software. Verify secure handshakes for Manufacturing Execution Systems (MES). Ensure the vision controller can trigger robotic handling units instantly. Delays in network communication result in unsorted defective parts passing through the line.
System Evaluation Matrix
Criteria | Common Mistake | Best Practice |
|---|---|---|
Hardware | Buying maximum megapixels blindly | Matching resolution to the minimum defect size |
Software | Assuming perfect part alignment | Testing algorithms on rotated and skewed parts |
Integration | Leaving network IT out of pilot phases | Testing PLC/MES data handshakes early in the project |
Deploying precision detection equipment introduces distinct engineering challenges. Lab performance rarely equals factory-floor performance. A controlled demonstration environment hides many dynamic variables. You must address environmental instability proactively. Ambient light bleed from skylights ruins image contrast. Heavy machine vibration blurs captured images. Airborne particulates settle on lenses and distort optical readings. You need robust physical enclosures to protect sensor accuracy. Environmental controls ensure repeatable measurement data across different shifts and seasons.
The false-reject dilemma is another major hidden risk. Engineers often tune these systems too strictly initially. They want absolutely zero defects reaching the end customer. However, over-sensitivity leads to scrapping perfectly viable parts. This destroys your profit margins quickly. You must establish statistically sound baseline thresholds using Gauge R&R (Repeatability and Reproducibility) studies. Gather extensive data on acceptable physical variations before locking your inspection parameters. Balanced thresholds prevent unnecessary waste.
Calibration overheads represent the reality of daily maintenance. Optical systems drift naturally over time. Thermal expansion in the factory changes camera alignments microscopically. You must ask how frequently the optical setup requires recalibration. Determine the specific error compensation routines needed. Calculate the operational downtime involved in these maintenance cycles. Automated calibration routines reduce this burden significantly. They run daily checks without requiring specialized engineering staff.
Install bandpass filters on lenses to block fluctuating ambient factory lighting entirely.
Mount cameras on independent stanchions to isolate them from heavy conveyor belt vibration.
Run the system in "ghost mode" for a week to gather baseline statistical data without rejecting parts.
Implement automated daily calibration checks using a certified golden master part to track drift.
Choosing a technology vendor is a long-term strategic decision. A successful partnership begins by defining a rigorous pilot scope. You must demand proof-of-concept (PoC) testing using actual production line parts. Do not accept tests run on sanitized vendor samples. Real parts carry machine oil, dust, and microscopic geometric variations. Your pilot must prove the system handles these real-world conditions reliably. Require the vendor to conduct a Site Acceptance Test (SAT) inside your facility. This proves the technology works under your specific environmental constraints.
Next, map out the comprehensive financial investment accurately. Hardware purchases represent only a fraction of the necessary budget. You must factor in ongoing software licensing fees. Calculate the exact integration engineering hours required for network connectivity. Budget for custom lighting setups designed specifically for your unique materials. Include comprehensive operator training programs in your estimates. Ignoring these critical elements guarantees major budget overruns later. You must secure funding for the complete operational lifecycle.
Finally, assess vendor support and regulatory compliance strictly. Ask about their capability to provide deep traceability documentation. If you manufacture medical devices, FDA 21 CFR Part 11 compliance is mandatory. The software must secure electronic signatures and maintain unalterable audit trails. Review their Service Level Agreement (SLA) response times closely. Every hour of vision system downtime means an hour of lost production. Ensure they provide rapid remote diagnostics and quick onsite engineering support.
A digital graphic detection system represents a massive upgrade for precision manufacturing. It functions as a continuous process improvement tool. It is definitely not a simple plug-and-play magic bullet. Success requires careful alignment of optical hardware, software algorithms, and factory environments. You must balance production throughput needs against optical resolution limits. Mitigating environmental variables like vibration and ambient light ensures long-term reliability. Proper vendor selection guarantees you receive necessary ongoing support.
We encourage decision-makers to take immediate, structured action. First, audit your current scrap rates rigorously. Identify exactly where manual inspection fails. Second, define your exact inspection bottlenecks clearly. Third, demand customized feasibility studies from your shortlisted vendors. Use your own complex parts for these studies. Request detailed integration roadmaps for your existing factory networks. This proactive approach guarantees a successful deployment. It ensures sustainable quality gains and strengthens your competitive advantage.
A: Rule-based systems rely on deterministic logic and fixed parameters. They excel in highly regulated environments requiring clear, auditable decision paths for precise dimensional measurements. Deep learning systems use neural networks to identify patterns. They are highly adaptable and perform better when categorizing complex, unpredictable textures or highly variable organic defects.
A: Reflective and transparent materials confuse standard cameras easily. A system handles them by utilizing specialized illumination geometries. Coaxial lighting directs light along the camera's optical axis to eliminate glare. Polarized lighting filters out scattered light rays. These custom setups ensure the sensor captures actual surface details instead of confusing reflections.
A: Yes, you can retrofit older lines, but it requires careful physical planning. Major integration challenges include tight physical space constraints and trigger-timing synchronization. You must also ensure Programmable Logic Controller (PLC) compatibility. Modern vision controllers often use intermediary protocol converters to communicate effectively with legacy factory automation networks.
A: Recalibration frequency depends entirely on your factory's specific environmental factors. Severe machine vibration and daily thermal expansion shift optical alignments slightly. Most precision environments require automated daily baseline checks using a certified master part. If the system detects minor drift, operators perform a full optical recalibration to restore micron-level accuracy.
