How To Choose High Voltage Testing Equipment For Electronic Components

Inquire

Sourcing high voltage testing equipment goes beyond simply ticking a compliance checkbox. It stands as a vital safeguard against catastrophic field failures and costly product liability claims. Manufacturers face a tough procurement challenge every day. They must balance fast production line throughput against rigorous defect detection. Identifying tiny anomalies like micro-arcing or insulation voids requires specialized precision. You need to match exact equipment capabilities to your daily operational realities. Using the wrong tool creates massive bottlenecks. It also allows hidden defects to reach end consumers.

This guide provides a vendor-agnostic, technical framework. We aim to help you evaluate, shortlist, and procure the most effective tools for your specific facility. You will discover how to align test methods directly to component failure modes. We will explore essential evaluation criteria, mandatory safety features, and strict integration standards. Ultimately, this approach ensures your testing setup drives consistent quality. It protects your brand reputation. It also guarantees reliable performance across all manufactured components.

Key Takeaways

  • Selecting the right equipment requires aligning test types (AC/DC Hipot, IR, Partial Discharge) with specific component failure modes.

  • True ROI in component reliability testing is driven by automated data logging, traceability, and minimal false-reject rates, not just upfront hardware costs.

  • Operator safety and integration readiness (MES/SCADA compatibility) are non-negotiable evaluation criteria for production environments.

  • Hidden implementation costs—such as specialized safety enclosures, operator training, and annual calibration downtime—must be factored into the Total Cost of Ownership (TCO).

Defining Your Testing Scope and Success Criteria

Success begins by defining your exact testing scope. You must understand where and how the equipment will operate. Evaluating testing environments prevents costly deployment failures.

Production vs. Type Testing

You need to distinguish clearly between inline production testing and laboratory type testing. Production testing requires 100% component coverage. You rely heavily on speed, seamless automation, and quick pass/fail indicators. Instruments here must survive continuous, multi-shift operations. Laboratory type testing serves a completely different purpose. It demands high precision and highly variable parameter controls. Engineers use lab testing to extract deep diagnostic data. They run destructive tests to find ultimate failure thresholds. You should never force a delicate lab instrument onto a high-speed production line. The lab unit will slow down throughput and break under constant mechanical stress.

Target Component Analysis

The physical characteristics of your device under test (DUT) dictate equipment specifications. You must analyze intrinsic capacitance and insulation material properties. The intended operating environment also plays a crucial role. A ceramic capacitor behaves differently under stress than an industrial power module. High-capacitance components often draw massive reactive currents. This characteristic triggers false alarms on standard AC testers. You need to evaluate these specific traits before engaging vendors. List your component families carefully. Document their maximum voltage ratings and leakage current tolerances.

Failure Mode Targeting

Align your equipment choice directly against the specific defects you need to catch. Different tools uncover very different weaknesses. For example, standard withstand tests might miss early-stage insulation wear. In these critical cases, you should use specialized methods for crack detection before complete breakdown occurs. Knowing your failure modes helps you avoid buying the wrong technology. Create a matrix of potential defects. Map each defect to the corresponding test voltage and waveform required to expose it.

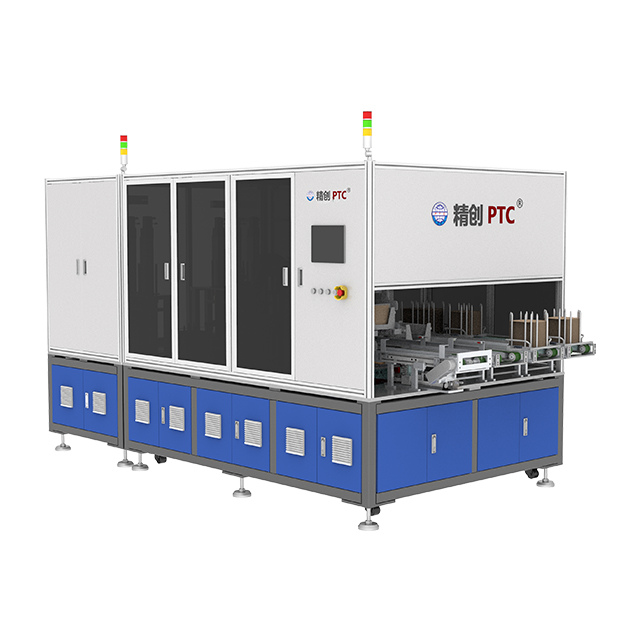

High Voltage Testing Equipment

Core Categories of High Voltage Testing Equipment

Understanding distinct equipment categories prevents costly procurement mistakes. Let us examine the four primary tools used today. Each category serves a highly specific engineering purpose.

Hipot (Dielectric Withstand) Testers

Hipot testers check overall dielectric strength. You can choose between AC and DC testing modalities. AC Hipot stresses the insulation in both polarities. It mimics real-world alternating current conditions perfectly. However, highly capacitive components draw excessive reactive current during AC tests. This phenomenon often triggers frustrating false failures. DC Hipot testing works much better for these highly capacitive components. DC voltage charges the component smoothly without heavy reactive currents. Operators can measure true leakage current accurately once the component reaches full charge.

Insulation Resistance (IR) Testers

IR testers measure the actual resistance value of an insulator. They do not merely force a simple pass/fail breakdown like Hipot devices. You apply a high DC voltage and measure the resulting microscopic leakage current. The device then calculates resistance in megohms or gigohms using Ohm's Law. This quantitative data proves vital for tracking insulation degradation over time. Quality control teams rely on IR testing for aging studies and environmental stress screening.

Partial Discharge (PD) Detectors

We consider partial discharge testing the ultimate gold standard for predictive component reliability testing. PD detectors uncover microscopic voids and tiny manufacturing anomalies. Standard Hipot tests easily miss these subtle defects. A microscopic void might survive a one-minute withstand test. Yet, it will likely fail after six months in the field due to constant electrical stress. PD testing flags these hidden risks early. It measures the tiny energy sparks occurring within the insulation voids.

Surge Testers

You use surge testers primarily for wound components. Coils, stators, and complex transformers require this specialized approach. Surge testers send rapid, high-voltage pulses directly into the windings. This helps detect turn-to-turn insulation weaknesses. Standard Hipot tests usually cannot identify internal shorts existing within the exact same winding layer. Surge testing compares the ringing waveform against a known good master component.

Comparison Table: Testing Technologies

Use the chart below to compare primary applications.

Test Category

Primary Function

Best Used For

AC Hipot

Dielectric withstand stress

Low-capacitance components

DC Hipot

Dielectric withstand stress

High-capacitance components

IR Testing

Quantifying resistance values

Tracking degradation over time

Partial Discharge

Detecting micro-voids

Predictive reliability testing

Surge Testing

Turn-to-turn fault detection

Coils and transformers

Essential Evaluation Criteria for Decision Makers

Selecting the ideal electrical inspection equipment requires a structured approach. You must weigh technical specs against strict safety protocols and modern data needs.

Technical Specifications & Range Match

You must carefully evaluate maximum voltage output and trip current sensitivity. Check the ramp and dwell time programmability extensively. Avoid the dangerous trap of over-specifying. Buying a 10kV tester for a simple 1kV application wastes your capital budget. Conversely, under-specifying leads to entirely inadequate stress testing. Match the output ranges strictly to your component design limits. Consider these key technical variables:

  • Output voltage resolution and accuracy.

  • Leakage current detection thresholds.

  • Programmable ramp-up and ramp-down rates.

  • Arc detection sensitivity settings.

Data Traceability and Automation Integration

Modern production relies entirely on verifiable audit trails for compliance. Evaluate the equipment's digital interfaces thoroughly. Look for robust RS-232, GPIB, USB, and Ethernet connectivity. The system must communicate smoothly with your manufacturing execution systems (MES) or SCADA platforms. Automated data logging effectively prevents human transcription error. Traceability protects your business during product recalls or difficult customer audits. It proves exactly when and how a specific component passed inspection.

Safety Features and Operator Protection

Working near high potentials poses severe safety risks. Mandatory safety mechanisms remain non-negotiable. You must ensure the unit includes Ground Fault Interrupts (GFI). Hardware interlocks provide a physical barrier to energized areas. Dual-palm start buttons keep operator hands firmly away from danger zones during active tests. Finally, rapid discharge capabilities safely bleed off residual energy immediately after a test finishes.

Common safety mistakes to avoid on the factory floor:

  • Bypassing hardware interlocks to intentionally speed up testing cycles.

  • Ignoring proper earth grounding protocols on the main test bench.

  • Failing to use insulated rubber mats in the designated workstation.

  • Allowing untrained personnel to clear high-voltage fault alarms.

Your testing protocols must meet strict regulatory requirements. Failing to align properly with industry standards exposes you to major legal liabilities.

Standard Alignment

You must verify standard compliance before issuing any purchase order. Look for direct alignment with regional and international testing rules. Key frameworks include IEC 60060, UL, CE, and EN 50191. These standards dictate exact test methods, safety precautions, and acceptable error margins. A non-compliant tester renders your product certification efforts completely invalid. Always request standard compliance certificates directly from the equipment manufacturer.

Calibration and Traceability

Annual calibration guarantees ongoing measurement accuracy. You should always demand ISO/IEC 17025 accredited calibration services. Equipment naturally drifts over time due to component aging and environmental factors. This hidden drift heavily impacts your false-positive and false-negative rates. A false positive incorrectly scraps a perfectly good component. A false negative disastrously ships a defective product to your end customer. Traceable calibration protects your quality baseline and your profit margins.

Implementation Realities and Deployment Factors

Bringing new testing hardware onto the floor involves significant logistical planning. You must prepare your physical facility and your operational team beforehand.

Facility Readiness

Evaluate your physical footprint and raw power requirements early. High voltage testing often demands dedicated, interlocked cages. You cannot simply place these machines in high-traffic pedestrian aisles. Facility planners must route appropriate ground lines directly to the installation site. Proper HVAC ventilation might also be necessary depending on the equipment size and heat generation. Prepare your layout weeks before the delivery truck arrives. Assess line-side space for material handling and reject bins.

Operator Training

Advanced diagnostic tools carry a notably steep learning curve. You must allocate paid time for proper operator training. Vendor-provided safety and operational courses prove absolutely essential. Untrained operators pose a severe safety hazard to themselves and others. They also struggle to interpret nuanced diagnostic data correctly. Comprehensive training ensures your team maximizes the equipment's capabilities safely. Document all training sessions meticulously for safety compliance audits.

Maintenance and Downtime

Unplanned equipment downtime halts your entire production line immediately. You should evaluate vendor Service Level Agreements (SLAs) aggressively during procurement. Ask probing questions about local technical support response times. Inquire heavily about the availability of loaner units during annual calibration events. Reliable vendor support minimizes expensive disruptions. It keeps your testing queue moving smoothly year-round. Request a clear spare parts availability list before finalizing the contract.

Conclusion

Navigating the complex procurement of high voltage testing equipment demands careful strategy. You must start by mapping specific component failure modes directly to the correct test types. Next, define your strict data logging and automation requirements clearly. Finally, assess the physical implementation realities affecting your facility floor.

Take these actionable next steps to secure the right solution:

  1. Create a standardized vendor scorecard rating safety, integration, and overall performance.

  2. Compile a representative sample batch of your actual electronic components.

  3. Request a formal proof-of-concept (POC) demo from your shortlisted vendors.

  4. Run your component samples through their machines to verify consistent test repeatability.

This hands-on verification approach guarantees success and finalizes your procurement decision confidently.

FAQ

Q: What is the difference between a Hipot tester and an insulation resistance tester?

A: A Hipot tester performs destructive stress testing. It applies massive voltage to ensure the insulation does not break down, providing a simple pass/fail result. An insulation resistance tester provides quantifiable measurement. It applies a lower high-voltage DC charge to calculate the exact resistance value of the insulator.

Q: How often should high voltage testing equipment be calibrated?

A: The industry standard requires annual calibration. This guarantees measurement accuracy and compliance. However, high-volume production lines or strict-compliance environments often require more frequent intervals. You might need semi-annual calibration to prevent equipment drift and maintain rigorous quality control.

Q: Can partial discharge testing replace standard dielectric withstand testing?

A: No, they act as complementary methods. Standard dielectric withstand testing verifies overall bulk insulation strength. It ensures the component survives sudden surges. Partial discharge testing finds microscopic, early-stage defects. It detects tiny voids or cracks that standard Hipot tests routinely miss.

Q: What are the safety requirements for operating high voltage electrical inspection equipment?

A: Operators must use isolated workstations equipped with physical safety interlocks. Proper grounding of both the equipment and the DUT is mandatory. Furthermore, comprehensive operator training per OSHA and EN standards ensures workers understand emergency rapid discharge protocols and dual-palm start mechanisms.
